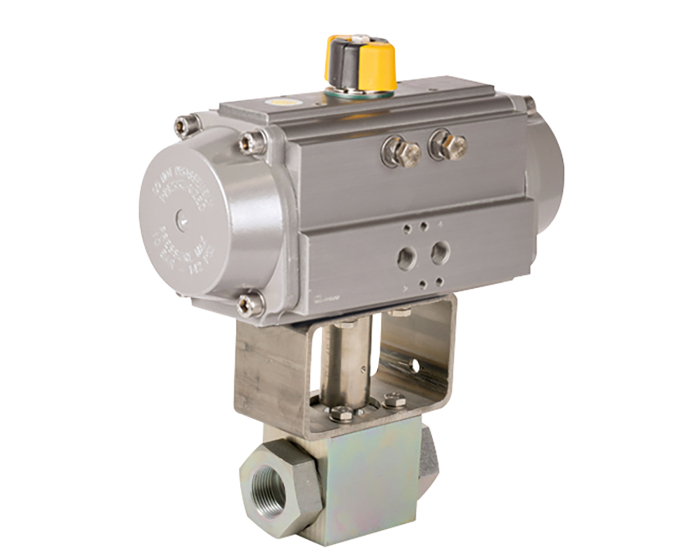

1 piece stainless steel ball valve 799 ZI + RE/RES pneumatic actuator

The 799 ZI series 1 piece ball valve has a 316 stainless steel body and ball, POM seats. Full bore. High pressure. PS : 315 to 500 bar - TS : -20 / +100°C. ALPHAIR pneumatic actuation. BSP threaded connections.
Choose your configuration
See all configurations
Réf.
CONF273221017007R
(Indicative price) €925.60
Details
Details
Option certificate 3.1 No
Maximum delta P (bar) 100
Actuator BR 64
Operating angle (°) 90
Shaft/stem matérial Stainless steel 316
Adjustable limit screws Yes
ATEX compatible Yes
Torque (Nm) 106.4
Face to Face (mm) 72.0
Body material Stainless steel 316 (1.4401)
ATEX protection mode EEx c
Number of ways 2
Bore Full
Packing gland FKM
PS (bar) 500
Connections BSP FF
Seats POM
Ball material Stainless steel 316
Surface temperature TX
TS max (°C) 100
TS min (°C) -20
ATEX zone 1. 2
Warranty period 1 year
CE Risk category III
Range Hydraulics
Fire safe No

Configurations

Product Reference Price Stock
Produit
2 way stainless steel ball valve BSP 799ZI 3/8'' + RE64
Produit
2 way stainless steel ball valve BSP 799ZI 3/8''+ RES76
Produit
2 way stainless steel ball valve BSP 799ZI 1/2'' + RE64
Produit
2 way stainless steel ball valve BSP 799ZI 1/2''+ RES86
Produit
2 way stainless steel ball valve BSP 799ZI 3/4'' + RE76
Produit
2 way stainless steel ball valve BSP 799ZI 3/4''+ RES101
Produit
2 way stainless steel ball valve BSP 799ZI 1'' + RE76
Produit
2 way stainless steel ball valve BSP 799ZI 1''+ RES101

8 Item(s)
