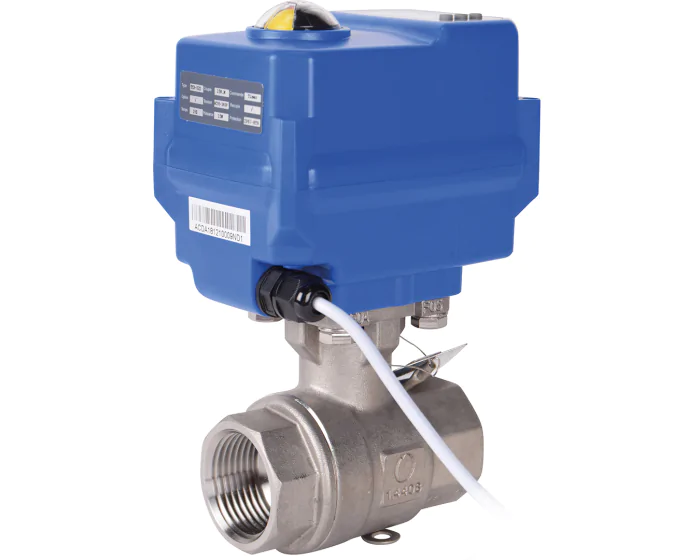

2 piece ball valve 715XS + TCR-D electric actuator timer

2-piece stainless steel ball valve designed with stainless steel body and ball, PTFE seats and PTFE/FKM shaft tightness. Full bore. G threaded fittings. PS: 63 bar. TCR-D 230V electric actuator with timer.
Choose your configuration
See all configurations
Réf.
CONF272402024160
(Indicative price) €1,035.00
Details
Details
Option certificate 3.1 Yes
Maximum delta P (bar) 10
Manual override By key
Torque (Nm) 106.4
Declutchable No
3D indicator Yes
Protection class (IP) IP 67
Torque limiter No
Body material Stainless steel CF8M (1.4408)
Number of ways 2
Bore Full
PS (bar) 63
Connections BSP FF
Anti-condensation heater Standard
Positive safety No
Function On-off
Electric actuator type TCR-02D
Electric actuator series TCR Series
Seats PTFE-Glass
TS max (°C) 180
TS min (°C) -10
Ball valve design 2-piece body
Warranty period 1 year
CE Excluded (Article 4. §3)
Electrical connection Per gland packing + 1.5 m cable
Fire safe No

Configurations

Product Reference Price Stock
2 piece stainless steel ball valve 715XS 1/2'' + TCR-02D 230V AC 272402024160 €1,035.00
Currently not in stock
2 piece stainless steel ball valve 715XS 1/2'' + TCR-02D 24V AC/DC 272402024161 €1,035.00
1 pcs available in stock
2 piece stainless steel ball valve 715XS 3/4'' + TCR-02D 230V AC 272403024160 €1,068.30
Currently not in stock
2 piece stainless steel ball valve 715XS 3/4'' + TCR-02D 24V AC/DC 272403024161 €1,068.30
1 pcs available in stock
2 piece stainless steel ball valve 715XS 1'' + TCR-02D 230V AC 272404024160 €1,098.08
Currently not in stock
2 piece stainless steel ball valve 715XS 1'' + TCR-02D 24V AC/DC 272404024161 €1,098.08
1 pcs available in stock
2 piece stainless steel ball valve 715XS 1''1/4 + TCR-02D 230V AC 272405024160 €1,143.08
Currently not in stock
2 piece stainless steel ball valve 715XS 1''1/4 + TCR-02D 24V AC/DC 272405024161 €1,143.08
1 pcs available in stock
