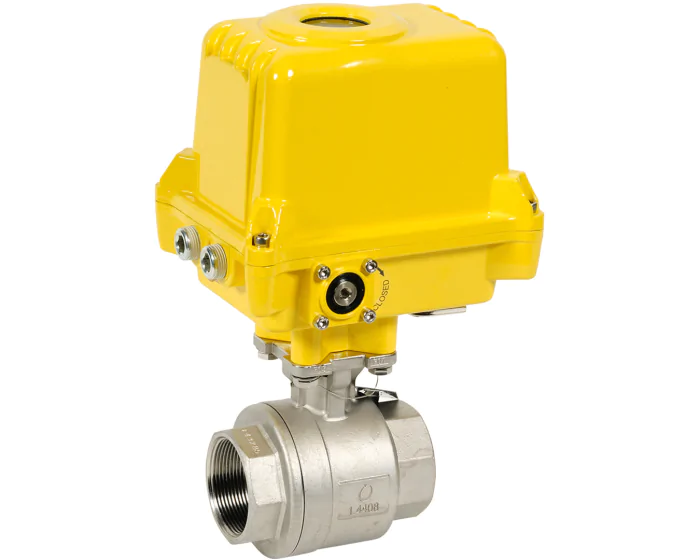

2 piece stainless steel ball valve 715XS + SA-X ATEX electric actuator

The 2-piece body ball valve 715 XS has a CF8M (1.4408) stainless steel body and ball, PTFE/glass seats. It is actuated with an ATEX electric actuator. PS: 63 bar, TS: -10/+180°C. G threaded fittings.
Choose your configuration
See all configurations
Réf.
CONF272402023310
(Indicative price) €1,680.30
Details
Details
Option certificate 3.1 Yes
Maximum delta P (bar) 10
ATEX atmosphere IIB
Shaft/stem matérial Stainless steel 316
Manual override By key
Declutchable No
Duty service S4 duty service - 50%
Face to Face (mm) 55.0
Protection class (IP) IP 67
Torque limiter No
Recommended location Outdoor
Body material Stainless steel CF8M (1.4408)
ATEX protection mode EEx d
Number of ways 2
Bore Full
Packing gland PTFE
PS (bar) 63
Power (W) 6
Connections BSP FF
Anti-condensation heater Standard
Positive safety No
Function On-off
Electric actuator type SA05-X
Electric actuator series SA-X/NA-X ATEX series
Seats PTFE-Glass
Operating time (s) 17.0
Surface temperature T4
Voltage 230 V AC
TS max (°C) 180
TS min (°C) -10
Ball valve design 2-piece body
ATEX zone 1. 2
Warranty period 1 year
CE Risk category III
Electrical connection By gland packing ATEX
Fire safe No

Configurations

Product Reference Price Stock
2 piece stainless steel ball valve 715XS 1/2'' + SA05 230V AC 272402023310 €1,680.30
15 pcs available in stock
2 piece stainless steel ball valve 715XS 1'' + SA05 230V AC 272404023310 €1,743.50
15 pcs available in stock
2 piece stainless steel ball valve 715XS 1''1/4 + SA05X 230V AC 272405023310 €1,789.08
15 pcs available in stock
2 piece stainless steel ball valve 715XS 1''1/2 + SA05 230V AC 272406023310 €1,900.80
15 pcs available in stock
2 piece stainless steel ball valve 715XS 2'' + SA05X 230V AC 272407023310 €2,048.95
15 pcs available in stock
