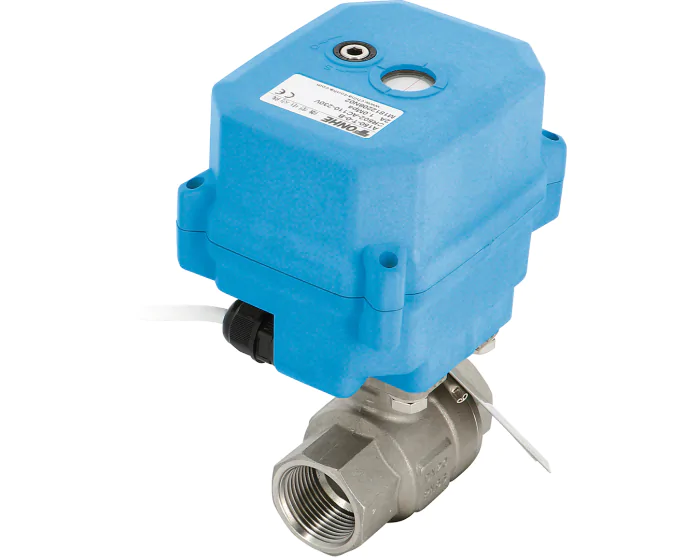

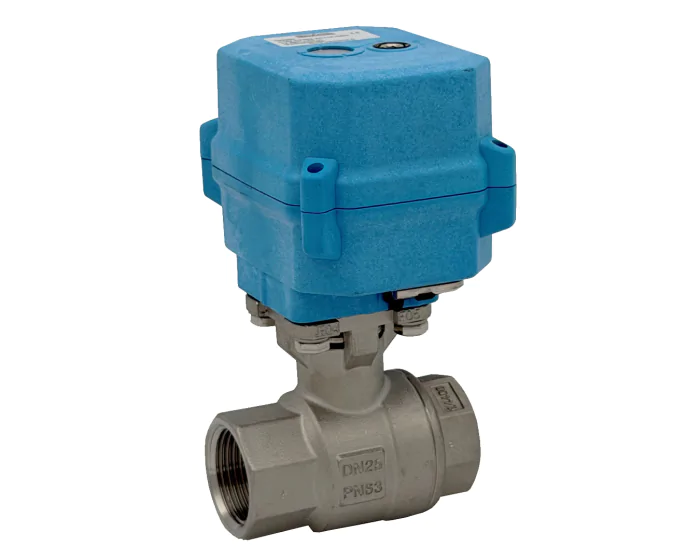

2 piece stainless steel ball valve 715XS + T15 electric actuator
The 2-piece body ball valve 715XS has a CF8M (1.4408) stainless steel body and ball, PTFE/glass seats. RC T15 2-wire electric actuator (capacitor return). PS: 63 bar - TS: -10/+180°C. G threaded.
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| Manual override | By key |
| Torque (Nm) | 106.4 |
| Declutchable | No |
| Duty service | S4 duty service - 30% |
| Torque limiter | No |
| Recommended location | Indoor |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| Power (W) | 30 |
| Connections | BSP FF |
| Anti-condensation heater | None |
| Positive safety | Yes |
| Function | On-off |
| Electric actuator type | T 15 |
| Operating time (s) | 12 |
| Voltage | 230 V AC |
| TS max (°C) | 180 |
| TS min (°C) | -10 |
| Ball valve design | 2-piece body |
| Positive safety type | Super capacitor |
| Warranty period | 1 year |
| Electrical connection | Per M12 gland packing + 1.5 m cable |
| Fire safe | No |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| 2 piece stainless steel ball valve 715XS 1/2'' + T15 230V AC | 272402022500 | €505.00 |
7 pcs available in stock
|
|
| 2 piece stainless steel ball valve 715XS 3/4'' + T15 230V AC | 272403022500 | €525.00 |
7 pcs available in stock
|
|
| 2 piece stainless steel ball valve 715XS 1'' + T15 230V AC | 272404022500 | €568.45 |
7 pcs available in stock
|
