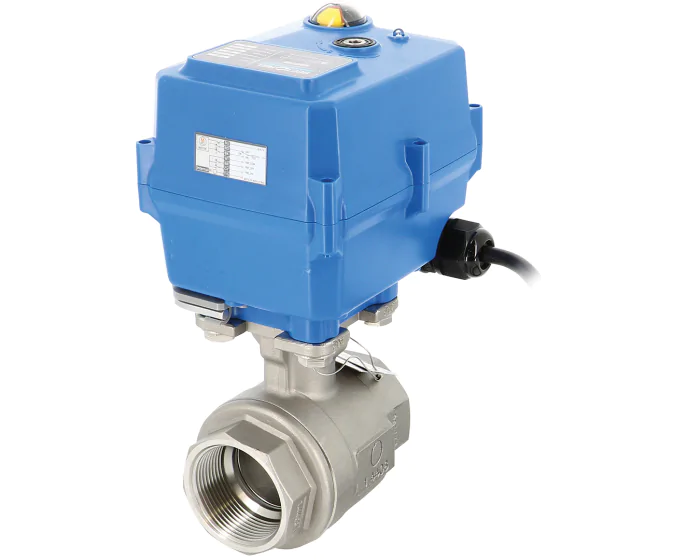

2 piece stainless steel ball valve 715XS + TCR electric actuator

2-piece stainless steel ball valve designed with stainless steel body and ball, PTFE seats and PTFE/FKM shaft tightness. Full bore. G threaded fittings. PS: 63 bar. TCR-N standard 3 wire 230V electric actuator.
Choose your configuration
See all configurations
Réf.
CONF272402024110
(Indicative price) €749.20
Details
Details
Option certificate 3.1 Yes
Maximum delta P (bar) 10
Manual override By key
Declutchable No
3D indicator Yes
Protection class (IP) IP 67
Torque limiter No
Body material Stainless steel CF8M (1.4408)
Number of ways 2
Bore Full
PS (bar) 63
Connections BSP FF
Anti-condensation heater Standard
Positive safety No
Function On-off
Electric actuator type TCR-02N
Electric actuator series TCR Series
Seats PTFE-Glass
TS max (°C) 180
TS min (°C) -10
Ball valve design 2-piece body
Warranty period 1 year
CE Excluded (Article 4. §3)
Range Industry
Electrical connection Per gland packing + 1.5 m cable
Fire safe No

Configurations

Product Reference Price Stock
2 piece stainless steel ball valve 715XS 1/2'' + TCR-02N 230V AC 272402024110 €749.20
7 pcs available in stock
2 piece stainless steel ball valve 715XS 1/2'' + TCR-02N 24V AC/DC 272402024111 €749.20
Currently not in stock
2 piece stainless steel ball valve 715XS 3/4'' + TCR-02N 230V AC 272403024110 €782.70
7 pcs available in stock
2 piece stainless steel ball valve 715XS 3/4'' + TCR-02N 24V AC/DC 272403024111 €782.70
Currently not in stock
2 piece stainless steel ball valve 715XS 1'' + TCR-02N 230V AC 272404024110 €812.38
7 pcs available in stock
2 piece stainless steel ball valve 715XS 1'' + TCR-02N 24V AC/DC 272404024111 €812.38
Currently not in stock
2 piece stainless steel ball valve 715XS 1''1/4 + TCR-02N 230V AC 272405024110 €857.30
7 pcs available in stock
2 piece stainless steel ball valve 715XS 1''1/4 + TCR-02N 24V AC/DC 272405024111 €857.30
Currently not in stock
2 piece stainless steel ball valve 715XS 1''1/2 + TCR-05N 230V AC 272406024310 €1,081.12
46 pcs available in stock
2 piece stainless steel ball valve 715XS 1''1/2 + TCR-05N 24V AC/DC 272406024311 €1,081.12
71 pcs available in stock
2 piece stainless steel ball valve 715XS 2'' + TCR-05N 230V AC 272407024310 €1,229.25
46 pcs available in stock
2 piece stainless steel ball valve 715XS 2'' + TCR-05N 24V AC/DC 272407024311 €1,229.25
77 pcs available in stock
2 piece stainless steel ball valve 715XS 2''1/2 + TCR-11N 230V AC 272408024610 €1,913.58
4 pcs available in stock
2 piece stainless steel ball valve 715XS 2''1/2 + TCR-11N 24V AC/DC 272408024611 €1,913.58
14 pcs available in stock
2 piece stainless steel ball valve 715XS 3'' + TCR-11N 230V AC 272409024610 €2,347.32
Currently not in stock
2 piece stainless steel ball valve 715XS 3'' + TCR-11N 24V AC/DC 272409024611 €2,347.32
Currently not in stock
