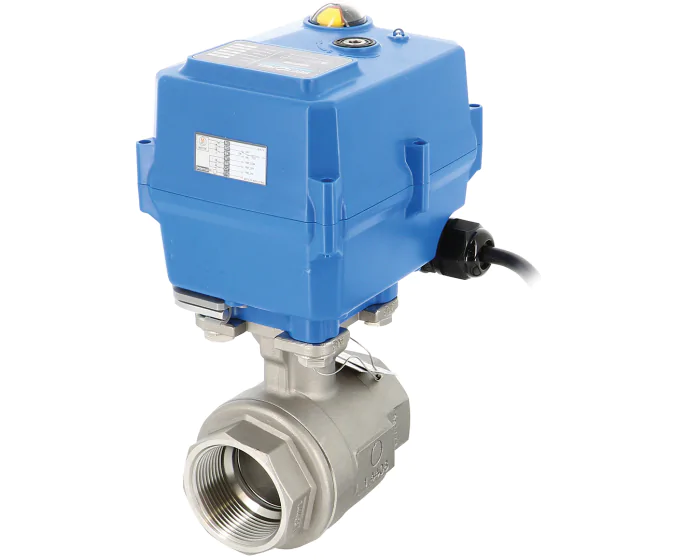

2 piece stainless steel ball valve 715XS + TCR-NH electric actuator quick acting

2-piece stainless steel ball valve designed with stainless steel body and ball, PTFE seats and PTFE/FKM shaft tightness. Full bore. G threaded fittings. PS: 63 bar. Actuation with TCR-NH fast electric actuator 230V.
Choose your configuration
See all configurations
Réf.
CONF272402024130
(Indicative price) €920.30
Details
Details
Option certificate 3.1 Yes
Maximum delta P (bar) 10
Manual override By key
Torque (Nm) 106.4
Declutchable No
3D indicator Yes
Protection class (IP) IP 67
Torque limiter No
Body material Stainless steel CF8M (1.4408)
Number of ways 2
Bore Full
PS (bar) 63
Connections BSP FF
Anti-condensation heater Standard
Positive safety No
Function On-off
Electric actuator type TCR-02NH
Electric actuator series TCR Series
Seats PTFE-Glass
TS max (°C) 180
TS min (°C) -10
Ball valve design 2-piece body
Warranty period 1 year
CE Excluded (Article 4. §3)
Electrical connection Per gland packing + 1.5 m cable
Fire safe No

Configurations

Product Reference Price Stock
2 piece stainless steel ball valve 715XS 1/2'' + TCR-02-NH 230V AC 272402024130 €974.95
Currently not in stock
2 piece stainless steel ball valve 715XS 1/2'' + TCR-02-NH 24V AC/DC 272402024131 €920.30
1 pcs available in stock
2 piece stainless steel ball valve 715XS 3/4'' + TCR-02-NH 230V AC 272403024130 €1,008.30
Currently not in stock
2 piece stainless steel ball valve 715XS 3/4'' + TCR-02-NH 24V AC/DC 272403024131 €953.62
1 pcs available in stock
2 piece stainless steel ball valve 715XS 1'' + TCR-02-NH 230V AC 272404024130 €1,038.08
Currently not in stock
2 piece stainless steel ball valve 715XS 1'' + TCR-02-NH 24V AC/DC 272404024131 €983.45
1 pcs available in stock
2 piece stainless steel ball valve 715XS 1''1/4 + TCR-02-NH 230V AC 272405024130 €1,083.05
Currently not in stock
2 piece stainless steel ball valve 715XS 1''1/4 + TCR-02-NH 24V AC/DC 272405024131 €1,028.38
1 pcs available in stock
2 piece stainless steel ball valve 715XS 1''1/2 + TCR-05-NH 230V AC 272406024330 €1,282.75
5 pcs available in stock
2 piece stainless steel ball valve 715XS 1''1/2 + TCR-05-NH 24V AC/DC 272406024331 €1,282.75
Currently not in stock
2 piece stainless steel ball valve 715XS 2'' + TCR-05-NH 230V AC 272407024330 €1,430.82
5 pcs available in stock
2 piece stainless steel ball valve 715XS 2'' + TCR-05-NH 24V AC/DC 272407024331 €1,430.82
Currently not in stock
2 piece stainless steel ball valve 715XS 2''1/2 + TCR-11-NH 230V AC 272408024630 €2,003.95
1 pcs available in stock
2 piece stainless steel ball valve 715XS 2''1/2 + TCR-11-NH 24V AC/DC 272408024631 €2,003.95
1 pcs available in stock
2 piece stainless steel ball valve 715XS 3'' + TCR-11-NH 230V AC 272409024630 €2,437.80
Currently not in stock
2 piece stainless steel ball valve 715XS 3'' + TCR-11-NH 24V AC/DC 272409024631 €2,437.80
Currently not in stock
