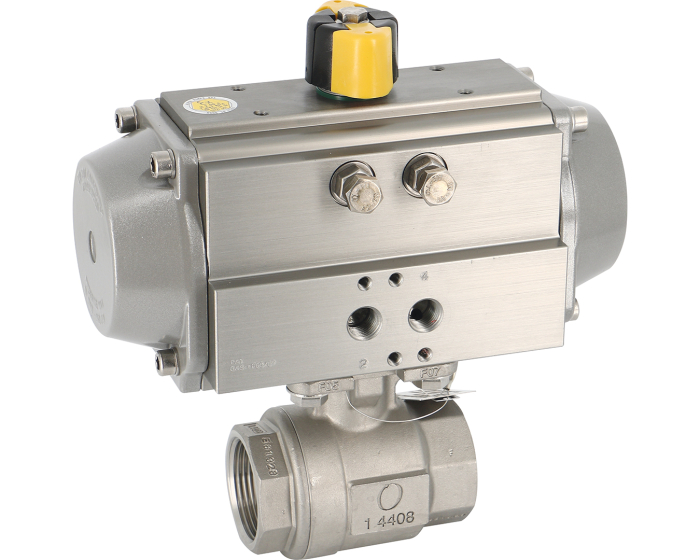

2 pieces stainless steel ball valves 715 XS + RE/RES pneumatic actuator

The 715 XS series 2-piece body ball valve has a CF8M (1.4408) stainless steel body and ball and PTFE/glass seats. It is actuated with an ALPHAIR pneumatic actuator. PS: 63 bar, TS: 180°C.
Choose your configuration
See all configurations
Réf.
CONF272402017004R
(Indicative price) €403.95
Details
Details
Option certificate 3.1 Yes
Maximum delta P (bar) 10
Actuator RE 43
Operating angle (°) 90
Shaft/stem matérial Stainless steel 316
Adjustable limit screws Yes
ATEX compatible Yes
Face to Face (mm) 55.0
Body material Stainless steel CF8M (1.4408)
ATEX protection mode EEx c
Number of ways 2
Bore Full
Packing gland PTFE
PS (bar) 63
Connections BSP FF
Seats PTFE-Glass
Ball material Stainless steel 316
Surface temperature TX
TS max (°C) 180
TS min (°C) -10
Ball valve design 2-piece body
ATEX zone 1.21.2.22
Warranty period 1 year
CE Risk category III
Range Industry
Fire safe No

Configurations

Product Reference Price Stock
2 pieces stainless steel ball valves BSP 715XS 1/2'' + RE43 272402017004R €403.95
142 pcs available in stock
2 pieces stainless steel ball valves BSP 715XS 1/2'' + RES43 272402017104R €436.00
32 pcs available in stock
2 pieces stainless steel ball valves BSP 715XS 3/4'' + RE43 272403017004R €437.45
70 pcs available in stock
2 pieces stainless steel ball valves BSP 715XS 3/4'' + RES51 272403017106R €542.38
21 pcs available in stock
2 pieces stainless steel ball valves BSP 715XS 1'' + RE43 272404017004R €467.05
132 pcs available in stock
2 pieces stainless steel ball valves BSP 715XS 1'' + RES64 272404017107R €597.05
35 pcs available in stock
2 pieces stainless steel ball valves BSP 715XS 1''1/4 + RE51 272405017006R €560.00
58 pcs available in stock
2 pieces stainless steel ball valves BSP 715XS 1''1/4 + RES76 272405017108R €768.42
58 pcs available in stock
2 pieces stainless steel ball valves BSP 715XS 1''1/2 + RE64 272406017007R €684.00
25 pcs available in stock
2 pieces stainless steel ball valves BSP 715XS 1''1/2 + RES86 272406017109R €1,070.92
35 pcs available in stock
2 pieces stainless steel ball valves BSP 715XS 2'' + RE76 272407017008R €939.95
84 pcs available in stock
2 pieces stainless steel ball valves BSP 715XS 2'' + RES101 272407017110R €1,362.50
27 pcs available in stock
2 pieces stainless steel ball valves BSP 715XS 2''1/2 + RE76 272408017008R €1,188.25
14 pcs available in stock
2 pieces stainless steel ball valves BSP 715XS 2''1/2 + RES101 272408017110R €1,613.08
14 pcs available in stock
2 pieces stainless steel ball valves BSP 715XS 3'' + RE86 272409017009R €1,765.18
Currently not in stock
2 pieces stainless steel ball valves BSP 715XS 3'' + RES116 272409017111R €2,391.58
Currently not in stock
