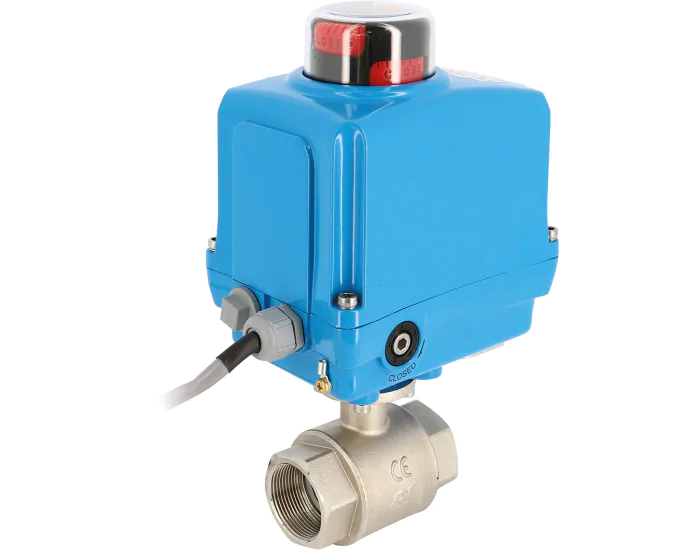

2 way brass ball valve 502XS + SA electric actuator capacitor return
Details
| Option certificate 3.1 | No |
|---|---|
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Torque (Nm) | 106.4 |
| Declutchable | No |
| Duty service | S4 duty service - 50% |
| Protection class (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Brass CW617N |
| Number of ways | 2 |
| Bore | Full |
| PS (bar) | 16 |
| Connections | BSP FF |
| Anti-condensation heater | Standard |
| Positive safety | Yes |
| Function | On-off |
| Electric actuator type | SA05 SCP |
| Electric actuator series | SA/NA series |
| Seats | PTFE |
| Operating time (s) | 8.0 |
| Voltage | 230 V AC |
| TS max (°C) | 100 |
| TS min (°C) | -10 |
| Ball valve design | 2-piece body |
| Positive safety type | Super capacitor |
| Warranty period | 1 year |
| Fire safe | No |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| 2 way brass ball valve 502 1'' + SA05 SCP 230V AC | 270004023065 | €3,232.18 |
2 pcs available in stock
|
|
| Brass ball valve 502 1''1/4 + SA05SCP 230V AC | 270005023065 | €3,267.40 |
2 pcs available in stock
|
|
| Brass ball valve 502 1''1/2 + SA05SCP 230V AC | 270006023065 | €3,318.60 |
2 pcs available in stock
|
|
| Brass ball valve 502 2'' + SA05SCP 230V AC | 270007023065 | €3,378.95 |
2 pcs available in stock
|
|
| Brass ball valve 502 1/4'' + SA05SCP 230V AC | 270090023065 | €3,260.82 |
2 pcs available in stock
|
