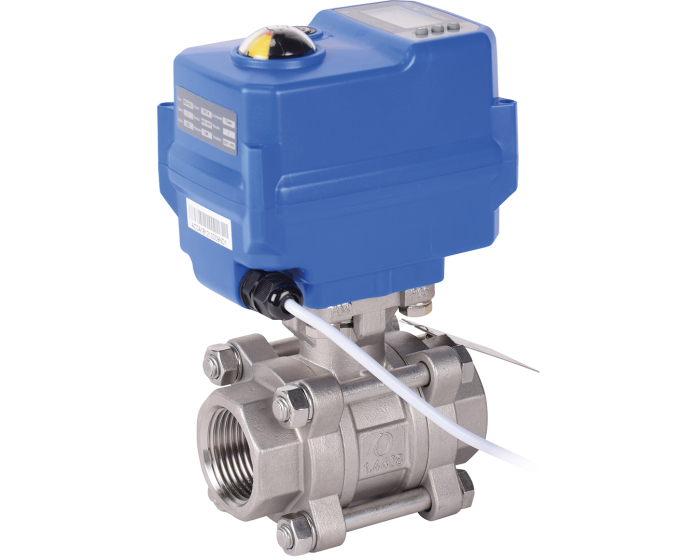

3 piece ball valve 746XS + TCR-D electric actuator timer

3-piece stainless steel ball valve designed with stainless steel body and ball, PTFE seats and PTFE/FKM shaft tightness. Full bore. G threaded fittings. PS: 64 bar. TCR-D 230V electric actuator with timer.
Choose your configuration
See all configurations
Réf.
CONF272500024160
(Indicative price) €1,069.93
Details
Details
Option certificate 3.1 Yes
Maximum delta P (bar) 10
Manual override By key
Torque (Nm) 106.4
Declutchable No
3D indicator Yes
Protection class (IP) IP 67
Torque limiter No
Body material Stainless steel CF8M (1.4408)
Number of ways 2
Bore Full
PS (bar) 64
Anti-condensation heater Standard
Positive safety No
Function On-off
Electric actuator type TCR-02D
Electric actuator series TCR Series
Seats PTFE-Glass
TS max (°C) 180
TS min (°C) -40
Ball valve design 3-piece body
Warranty period 1 year
CE Excluded (Article 4. §3)
Electrical connection Per gland packing + 1.5 m cable
Fire safe No

Configurations

Product Reference Price Stock
3 piece stainless steel ball valve 746XS 1/4'' + TCR-02D 230V AC 272500024160 €1,069.92
Currently not in stock
3 piece stainless steel ball valve 746XS 1/4'' + TCR-02D 24V AC/DC 272500024161 €1,069.92
1 pcs available in stock
3 piece stainless steel ball valve 746XS 3/8'' + TCR-02D 230V AC 272501024160 €1,072.20
Currently not in stock
3 piece stainless steel ball valve 746XS 3/8'' + TCR-02D 24V AC/DC 272501024161 €1,072.20
1 pcs available in stock
3 piece stainless steel ball valve 746XS 1/2'' + TCR-02D 230V AC 272642024160 €1,072.20
Currently not in stock
3 piece stainless steel ball valve 746XS 1/2'' + TCR-02D 24V AC/DC 272642024161 €1,072.20
1 pcs available in stock
3 piece stainless steel ball valve 746XS 3/4'' + TCR-02D 230V AC 272643024160 €1,095.50
Currently not in stock
3 piece stainless steel ball valve 746XS 3/4'' + TCR-02D 24V AC/DC 272643024161 €1,095.50
1 pcs available in stock
3 piece stainless steel ball valve 746XS 1'' + TCR-02D 230V AC 272644024160 €1,160.58
Currently not in stock
3 piece stainless steel ball valve 746XS 1'' + TCR-02D 24V AC/DC 272644024161 €1,160.58
1 pcs available in stock
3 piece stainless steel ball valve 745XS BW DN8 + TCR-02D 230V AC 272660024160 €1,069.92
Currently not in stock
3 piece stainless steel ball valve 745XS BW DN8 + TCR-02D 24V AC/DC 272660024161 €1,069.92
1 pcs available in stock
3 piece stainless steel ball valve 745XS BW DN10 + TCR-02D 230V AC 272661024160 €1,072.20
Currently not in stock
3 piece stainless steel ball valve 745XS BW DN10 + TCR-02D 24V AC/DC 272661024161 €1,072.20
1 pcs available in stock
3 piece stainless steel ball valve 745XS BW DN15 + TCR-02D 230V AC 272662024160 €1,072.20
Currently not in stock
3 piece stainless steel ball valve 745XS BW DN15 + TCR-02D 24V AC/DC 272662024161 €1,072.20
1 pcs available in stock
3 piece stainless steel ball valve 745XS BW DN20 + TCR-02D 230V AC 272663024160 €1,095.50
Currently not in stock
3 piece stainless steel ball valve 745XS BW DN20 + TCR-02D 24V AC/DC 272663024161 €1,095.50
Currently not in stock
3 piece stainless steel ball valve 745XS BW DN25 + TCR-02D 230V AC 272664024160 €1,160.58
Currently not in stock
3 piece stainless steel ball valve 745XS BW DN25 + TCR-02D 24V AC/DC 272664024161 €1,160.58
1 pcs available in stock
3 piece stainless steel ball valve 743XS SW DN15 + TCR-02D 230V AC 272682024160 €1,072.20
Currently not in stock
3 piece stainless steel ball valve 743XS SW DN15 + TCR-02D 24V AC/DC 272682024161 €1,072.20
1 pcs available in stock
3 piece stainless steel ball valve 743XS SW DN20 + TCR-02D 230V AC 272683024160 €1,095.50
Currently not in stock
3 piece stainless steel ball valve 743XS SW DN20 + TCR-02D 24V AC/DC 272683024161 €1,095.50
1 pcs available in stock
3 piece stainless steel ball valve 743XS SW DN25 + TCR-02D 230V AC 272684024160 €1,160.58
Currently not in stock
3 piece stainless steel ball valve 743XS SW DN25 + TCR-02D 24V AC/DC 272684024161 €1,160.58
1 pcs available in stock
