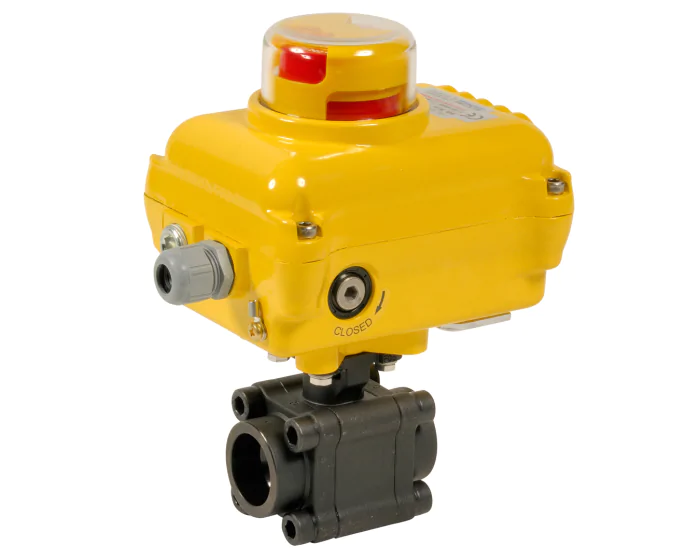

3 piece carbon steel ball valve 702 + SA05 electric actuator

The 702 3-piece body ball valve has a WCB steel body, stainless steel ball and PTFE/carbon seats. It is actuated with an SA electric actuator. PS: 100 bar, TS: 220°C. Threaded G or welding BW.
Choose your configuration
See all configurations
Réf.
CONF271540023010
(Indicative price) €1,249.13
Details
Details
Option certificate 3.1 Yes
Maximum delta P (bar) 10
Shaft/stem matérial Stainless steel 316
Manual override By key
Torque (Nm) 106.4
Declutchable No
Duty service S4 duty service - 50%
Face to Face (mm) 64.8
Protection class (IP) IP 67
Torque limiter No
Recommended location Outdoor
Body material Carbon steel A216 WCB (1.0619)
Number of ways 2
Bore Full
Packing gland Graphite
PS (bar) 137
Power (W) 6
Connections BSP FF
Anti-condensation heater Standard
Positive safety No
Function On-off
Electric actuator type SA 05
Electric actuator series SA/NA series
Seats PTFE-Carbon
Operating time (s) 17.0
Voltage 230 V AC
TS max (°C) 220
TS min (°C) -20
Ball valve design 3-piece body
Warranty period 1 year
CE Risk category III
Electrical connection Per gland packing M20 x 1.5
Fire safe Yes

Configurations

Product Reference Price Stock
3 piece carbon steel ball valve 702 BSP 1/4'' + SA05 230V AC 271540023010 €1,365.22
27 pcs available in stock
3 piece carbon steel ball valve 702 BSP 3/8'' + SA05 230V AC 271541023010 €1,367.50
59 pcs available in stock
3 piece carbon steel ball valve 702 BSP 1/2'' + SA05 230V AC 271542023010 €1,375.00
51 pcs available in stock
3 piece carbon steel ball valve 702 BSP 3/4'' + SA05 230V AC 271543023010 €1,400.00
77 pcs available in stock
3 piece carbon steel ball valve 702 BSP 1'' + SA05 230V AC 271544023010 €1,527.78
Currently not in stock
3 piece carbon steel ball valve 702 BSP 1''1/4+SA05 230V AC 271545023010 €1,507.50
Currently not in stock
3 piece carbon steel ball valve 702 BSP 1''1/2+SA05 230V AC 271546023010 €1,577.55
17 pcs available in stock
3 piece carbon steel ball valve 702 BSP 2'' + SA05 230V AC 271547023010 €2,186.40
38 pcs available in stock
3 piece carbon steel ball valve 702 BW 1/4'' + SA05 230V AC 271560023010 €1,249.12
11 pcs available in stock
3 piece carbon steel ball valve 702 BW 3/8'' + SA05 230V AC 271561023010 €1,252.10
24 pcs available in stock
3 piece carbon steel ball valve 702 BW 1/2'' + SA05 230V AC 271562023010 €1,271.12
97 pcs available in stock
3 piece carbon steel ball valve 702 BW 3/4'' + SA05 230V AC 271563023010 €1,301.12
58 pcs available in stock
3 piece carbon steel ball valve 702 BW 1'' + SA05 230V AC 271564023010 €1,404.28
Currently not in stock
3 piece carbon steel ball valve 702 BW 1''1/4 + SA05 230V AC 271565023010 €1,423.58
Currently not in stock
3 piece carbon steel ball valve 702 BW 1''1/2 + SA05 230V AC 271566023010 €1,508.60
45 pcs available in stock
3 piece carbon steel ball valve 702 BW 2'' + SA05 230V AC 271567023010 €1,907.65
7 pcs available in stock
3 piece carbon steel ball valve 702 SW 1/4'' + SA05 230V AC 271580023010 €1,249.12
97 pcs available in stock
3 piece carbon steel ball valve 702 SW 3/8'' + SA05 230V AC 271581023010 €1,252.10
9 pcs available in stock
3 piece carbon steel ball valve 702 SW 1/2'' + SA05 230V AC 271582023010 €1,271.12
20 pcs available in stock
3 piece carbon steel ball valve 702 SW 3/4'' + SA05 230V AC 271583023010 €1,301.12
Currently not in stock
3 piece carbon steel ball valve 702 SW 1'' + SA05 230V AC 271584023010 €1,404.28
Currently not in stock
3 piece carbon steel ball valve 702 SW 1''1/4 + SA05 230V AC 271585023010 €1,423.58
Currently not in stock
3 piece carbon steel ball valve 702 SW 1''1/2 + SA05 230V AC 271586023010 €1,508.60
Currently not in stock
3 piece carbon steel ball valve 702 SW 2'' + SA05 230V AC 271587023010 €1,907.65
Currently not in stock
3 piece carbon steel ball valve 702 NPT 1/4'' + SA05 230V AC 271590023010 €1,249.12
48 pcs available in stock
3 piece carbon steel ball valve 702 NPT 3/8'' + SA05 230V AC 271591023010 €1,252.10
14 pcs available in stock
3 piece carbon steel ball valve 702 NPT 1/2'' + SA05 230V AC 271592023010 €1,271.12
78 pcs available in stock
3 piece carbon steel ball valve 702 NPT 3/4'' + SA05 230V AC 271593023010 €1,301.12
76 pcs available in stock
3 piece carbon steel ball valve 702 NPT 1'' + SA05 230V AC 271594023010 €1,404.28
Currently not in stock
3 piece carbon steel ball valve 702 NPT 1''1/4 + SA05 230V AC 271595023010 €1,423.58
Currently not in stock
3 piece carbon steel ball valve 702 NPT 1''1/2 + SA05 230V AC 271596023010 €1,508.60
18 pcs available in stock
3 piece carbon steel ball valve 702 NPT 2'' + SA05 230V AC 271597023010 €1,907.65
9 pcs available in stock
