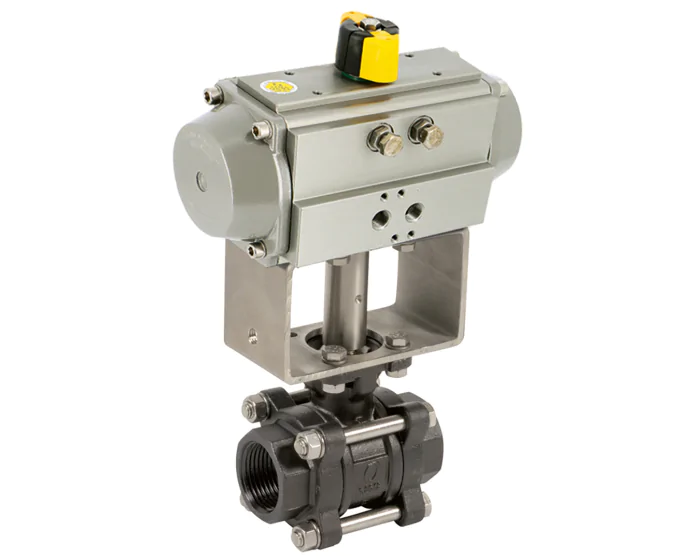

3 piece carbon steel ball valve 737-8-9 XS + RE/RES pneumatic actuator

The 737-738-739 XS 3-piece body ball valve has a 1.0619 carbon steel body, a stainless steel ball and PTFE/stainless steel seats. It is actuated with an ALPHAIR pneumatic actuator. Steam service: PS 15 bar, TS 200°C
Choose your configuration
See all configurations
Réf.
CONF271202017006R
(Indicative price) €655.00
Details
Details
Option certificate 3.1 Yes
Maximum delta P (bar) 10
Actuator BR 51
Operating angle (°) 90
Shaft/stem matérial Stainless steel 316
Adjustable limit screws Yes
ATEX compatible Yes
DN 1/2''
Face to Face (mm) 75.0
Body material Carbon steel A216 WCB (1.0619)
ATEX protection mode EEx c
Number of ways 2
Bore Full
Packing gland Graphite
PS (bar) 63
Connections BSP FF
Seats PTFE-Stainless steel
Ball material Stainless steel 316
Surface temperature TX
TS max (°C) 220
TS min (°C) -25
Pneumatic actuator type Double acting
Ball valve design 3-piece body
ATEX zone 1.21.2.22
Warranty period 1 year
CE Risk category III
Range Steam
Fire safe Yes

Configurations

Product Reference Price Stock
3 pieces carbon steel ball valve BSP 737XS 1/2'' + RE51 271202017006R €655.00
35 pcs available in stock
3 pieces carbon steel ball valve BSP 737XS 1/2'' + RES51 271202017106R €712.05
24 pcs available in stock
3 pieces carbon steel ball valve BSP 737XS 3/4'' + RE51 271203017006R €679.30
32 pcs available in stock
3 pieces carbon steel ball valve BSP 737XS 3/4'' + RES64 271203017107R €761.25
7 pcs available in stock
3 pieces carbon steel ball valve BSP 737XS 1'' + RE51 271204017006R €693.68
35 pcs available in stock
3 pieces carbon steel ball valve BSP 737XS 1'' + RES64 271204017107R €775.42
7 pcs available in stock
3 pieces carbon steel ball valve BSP 737XS 1''1/4 + RE51 271205017006R €783.70
13 pcs available in stock
3 pieces carbon steel ball valve BSP 737XS 1''1/4 + RES76 271205017108R €991.58
13 pcs available in stock
3 pieces carbon steel ball valve BSP 737XS 1''1/2 + RE64 271206017007R €965.12
16 pcs available in stock
3 pieces carbon steel ball valve BSP 737XS 1''1/2 + RES86 271206017109R €1,384.18
16 pcs available in stock
3 pieces carbon steel ball valve BSP 737XS 2'' + RE76 271207017008R €1,244.18
7 pcs available in stock
3 pieces carbon steel ball valve BSP 737XS 2'' + RES101 271207017110R €1,661.80
7 pcs available in stock
CA. STEEL BALL V. 738XS BW DN15 + RE51 PNEU. ACT. Double acting / DP=10bar max 271212017006R €655.00
18 pcs available in stock
CA. STEEL BALL V. 738XS BW DN15 +RES51 PNEU. ACT. Spring return / DP=10bar max 271212017106R €712.05
18 pcs available in stock
CA. STEEL BALL V. 738XS BW DN20 + RE51 PNEU. ACT. Double acting / DP=10bar max 271213017006R €679.30
3 pcs available in stock
CA. STEEL BALL V. 738XS BW DN20 +RES64 PNEU. ACT. Spring return / DP=10bar max 271213017107R €761.25
3 pcs available in stock
CA. STEEL BALL V. 738XS BW DN25 + RE51 PNEU. ACT. Double acting / DP=10bar max 271214017006R €693.68
7 pcs available in stock
CA. STEEL BALL V. 738XS BW DN25 +RES64 PNEU. ACT. Spring return / DP=10bar max 271214017107R €775.42
7 pcs available in stock
CA. STEEL BALL V. 738XS BW DN32 + RE51 PNEU. ACT. Double acting / DP=10bar max 271215017006R €783.70
27 pcs available in stock
CA. STEEL BALL V. 738XS BW DN32 +RES76 PNEU. ACT. Spring return / DP=10bar max 271215017108R €991.58
27 pcs available in stock
CA. STEEL BALL V. 738XS BW DN40 + RE64 PNEU. ACT. Double acting / DP=10bar max 271216017007R €965.12
2 pcs available in stock
CA. STEEL BALL V. 738XS BW DN40 + RES86 PNEU. ACT. Spring return / DP=10bar max 271216017109R €1,384.18
2 pcs available in stock
CA. STEEL BALL V. 738XS BW DN50 + RE76 PNEU. ACT. Double acting / DP=10bar max 271217017008R €1,244.18
22 pcs available in stock
CA. STEEL BALL V. 738XS BW DN50 +RES101 PNEU. ACT. Spring return / DP=10bar max 271217017110R €1,661.80
17 pcs available in stock
CA. STEEL BALL V. 739XS SW DN15 + RE51 PNEU. ACT. Double acting / DP=10bar max 271232017006R €655.00
24 pcs available in stock
CA. STEEL BALL V. 739XS SW DN15 +RES51 PNEU. ACT. Spring return / DP=10bar max 271232017106R €712.05
24 pcs available in stock
CA. STEEL BALL V. 739XS SW DN20 + RE51 PNEU. ACT. Double acting / DP=10bar max 271233017006R €679.30
8 pcs available in stock
CA. STEEL BALL V. 739XS SW DN20 +RES64 PNEU. ACT. Spring return / DP=10bar max 271233017107R €761.25
7 pcs available in stock
CA. STEEL BALL V. 739XS SW DN25 + RE51 PNEU. ACT. Double acting / DP=10bar max 271234017006R €693.68
5 pcs available in stock
CA. STEEL BALL V. 739XS SW DN25 +RES64 PNEU. ACT. Spring return / DP=10bar max 271234017107R €775.42
5 pcs available in stock
CA. STEEL BALL V. 739XS SW DN32 + RE51 PNEU. ACT. Double acting / DP=10bar max 271235017006R €783.70
24 pcs available in stock
CA. STEEL BALL V. 739XS SW DN32 +RES76 PNEU. ACT. Spring return / DP=10bar max 271235017108R €991.58
24 pcs available in stock
CA. STEEL BALL V. 739XS SW DN40 + RE64 PNEU. ACT. Double acting / DP=10bar max 271236017007R €965.12
32 pcs available in stock
CA. STEEL BALL V. 739XS SW DN40 + RES86 PNEU. ACT. Spring return / DP=10bar max 271236017109R €1,384.18
30 pcs available in stock
CA. STEEL BALL V. 739XS SW DN50 + RE76 PNEU. ACT. Double acting / DP=10bar max 271237017008R €1,244.18
6 pcs available in stock
CA. STEEL BALL V. 739XS SW DN50 +RES101 PNEU. ACT. Spring return / DP=10bar max 271237017110R €1,661.80
6 pcs available in stock
