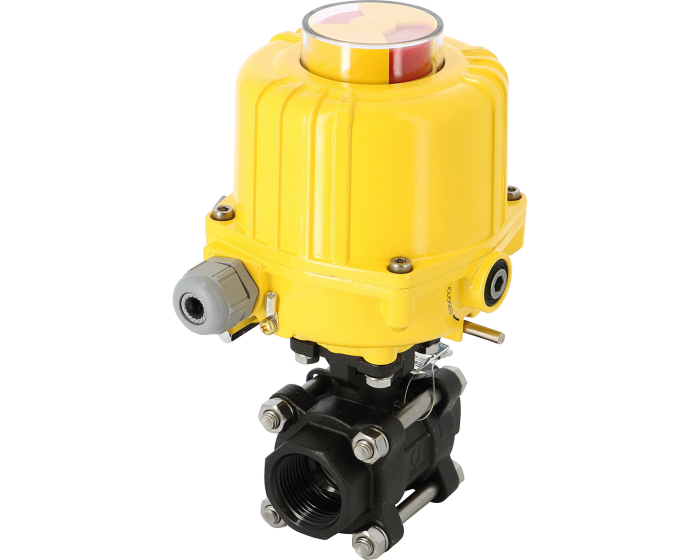

3 piece carbon steel ball valve 737-8-9XS + SA electric actuator
The 3-piece body 737 XS steel ball valve has a 1.0619 steel body, a stainless steel ball and PTFE/stainless steel seats. It is actuated with an SA electric actuator. PS: 63 bar, TS: -25/+220°C. Threaded or weldable.
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Torque (Nm) | 106.4 |
| Declutchable | Yes |
| Duty service | S4 duty service - 50% |
| Protection class (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 63 |
| Power (W) | 18 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator series | SA/NA series |
| Seats | PTFE-Stainless steel |
| Operating time (s) | 12.0 |
| Voltage | 230 V AC |
| TS max (°C) | 220 |
| TS min (°C) | -25 |
| Ball valve design | 3-piece body |
| Warranty period | 1 year |
| Fire safe | Yes |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| 3 piece carbon steel ball valve BSP 737XS 1/2'' + SA03 230V AC | 271202023000D | €789.50 |
14 pcs available in stock
|
|
| 3 piece carbon steel ball valve BSP 737XS 3/4'' + SA03 230V AC | 271203023000D | €816.68 |
5 pcs available in stock
|
|
| 3 piece carbon steel ball valve BSP 737XS 1'' + SA03 230V AC | 271204023000D | €849.55 |
22 pcs available in stock
|
|
| 3 piece carbon steel ball valve BSP 737XS 1''1/4 + SA05 230V AC | 271205023010D | €1,280.60 |
12 pcs available in stock
|
|
| 3 piece carbon steel ball valve BSP 737XS 1''1/2 + SA05 230V AC | 271206023010D | €1,388.82 |
14 pcs available in stock
|
|
| 3 piece carbon steel ball valve BSP 737XS 2'' + SA05 230V AC | 271207023010D | €1,486.95 |
10 pcs available in stock
|
|
| 3 piece carbon steel ball valve BW 738XS DN15 + SA03 230V AC | 271212023000D | €712.78 |
16 pcs available in stock
|
|
| 3 piece carbon steel ball valve BW 738XS DN20 + SA03 230V AC | 271213023000D | €734.25 |
3 pcs available in stock
|
|
| 3 piece carbon steel ball valve BW 738XS DN25 + SA03 230V AC | 271214023000D | €777.62 |
6 pcs available in stock
|
|
| 3 piece carbon steel ball valve BW 738XS DN32 + SA05 230V AC | 271215023010D | €1,215.12 |
27 pcs available in stock
|
|
| 3 piece carbon steel ball valve BW 738XS DN40 + SA05 230V AC | 271216023010D | €1,297.75 |
2 pcs available in stock
|
|
| 3 piece carbon steel ball valve BW 738XS DN50 + SA05 230V AC | 271217023010D | €1,423.68 |
21 pcs available in stock
|
|
| 3 piece carbon steel ball valve SW 739XS DN15 + SA03 230V AC | 271232023000D | €712.78 |
22 pcs available in stock
|
|
| 3 piece carbon steel ball valve SW 739XS DN20 + SA03 230V AC | 271233023000D | €734.25 |
7 pcs available in stock
|
|
| 3 piece carbon steel ball valve SW 739XS DN25 + SA03 230V AC | 271234023000D | €777.62 |
3 pcs available in stock
|
|
| 3 piece carbon steel ball valve SW 739XS DN32 + SA05 230V AC | 271235023010D | €1,215.12 |
21 pcs available in stock
|
|
| 3 piece carbon steel ball valve SW 739XS DN40 + SA05 230V AC | 271236023010D | €1,297.75 |
29 pcs available in stock
|
|
| 3 piece carbon steel ball valve SW 739XS DN50 + SA05 230V AC | 271237023010D | €1,423.68 |
7 pcs available in stock
|
