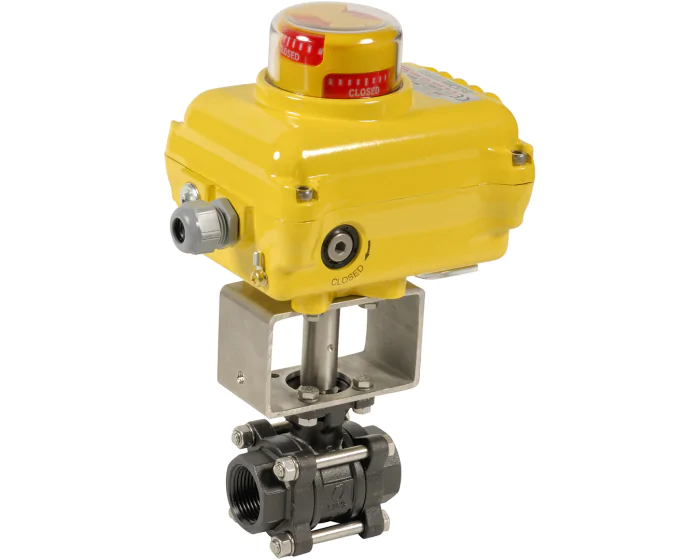

3 piece carbon steel ball valve 737-8-9XS + SA05 electric actuator

The 3-piece body 737 XS steel ball valve has a 1.0619 steel body, a stainless steel ball and PTFE/stainless steel seats. It is actuated with an electric actuator SA05. PS: 63 bar, TS: -25/+220°C. Threaded or weldable.
Choose your configuration
See all configurations
Réf.
CONF271202023010
(Indicative price) €1,202.25
Details
Details
Option certificate 3.1 Yes
Maximum delta P (bar) 10
Shaft/stem matérial Stainless steel 316
Manual override By key
Declutchable No
DN 1/2''
Duty service S4 duty service - 50%
Face to Face (mm) 75.0
Protection index (IP) IP 67
Torque limiter No
Recommended location Outdoor
Body material Carbon steel A216 WCB (1.0619)
Number of ways 2
Bore Full
Packing gland Graphite
PS (bar) 63
Power (W) 6
Connections BSP FF
Anti-condensation heater Standard
Positive safety No
Function On-off
Electric actuator type SA 05
Electric actuator series SA/NA series
Seats PTFE-Stainless steel
Operating time (s) 17.0
Voltage 230 V AC
TS max (°C) 220
TS min (°C) -25
Ball valve design 3-piece body
Warranty period 1 year
CE Risk category III
Electrical connection Per gland packing M20 x 1.5
Fire safe Yes

Configurations

Product Reference Price Stock
Produit
3 piece carbon steel ball valve 737XS BSP 1/2'' + SA05 230V AC
Produit
3 piece carbon steel ball valve 737XS BSP 3/4'' + SA05 230V AC
Produit
3 piece carbon steel ball valve 737XS BSP 1'' + SA05 230V AC
Produit
3 piece carbon steel ball valve 737XS BSP 1''1/4 + SA05 230V AC
Produit
3 piece carbon steel ball valve 737XS BSP 1''1/2 + SA05 230V AC
Produit
3 piece carbon steel ball valve 737XS BSP 2'' + SA05 230V AC
Produit
3 piece carbon steel ball valve 738XS BW 1/2'' + SA05 230V AC
Produit
3 piece carbon steel ball valve 738XS BW 3/4'' + SA05 230V AC
Produit
3 piece carbon steel ball valve 738XS BW 1'' + SA05 230V AC
Produit
3 piece carbon steel ball valve 738XS BW 1''1/4 + SA05 230V AC
Produit
3 piece carbon steel ball valve 738XS BW 1''1/2 + SA05 230V AC
Produit
3 piece carbon steel ball valve 738XS BW 2'' + SA05 230V AC
Produit
3 piece carbon steel ball valve 739XS SW 1/2'' + SA05 230V 230V AC
Produit
3 piece carbon steel ball valve 739XS SW 3/4'' + SA05 230V 230V AC
Produit
3 piece carbon steel ball valve 739XS SW 1'' + SA05 230V 230V AC
Produit
3 piece carbon steel ball valve 739XS SW 1''1/4 + SA05 230V 230V AC
Produit
3 piece carbon steel ball valve 739XS SW 1''1/2 + SA05 230V 230V AC
Produit
3 piece carbon steel ball valve 739XS SW 2'' + SA05 230V 230V AC

18 Item(s)
