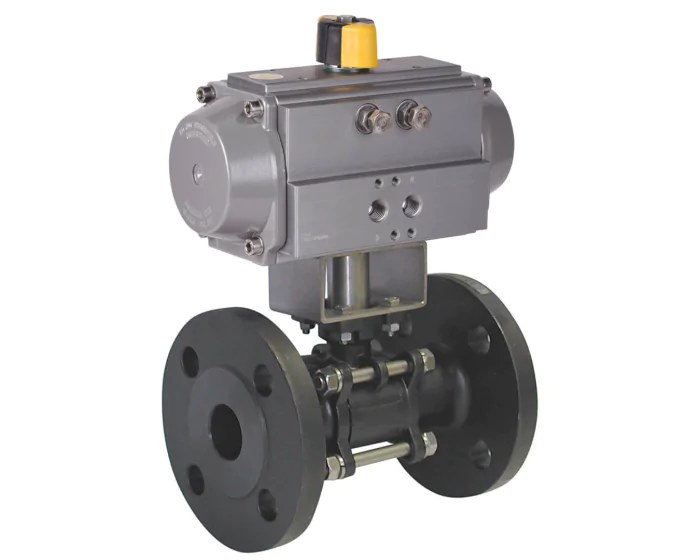

3 piece carbon steel ball valve765 XS + RE/RES pneumatic actuator

The 765 XS series l 3-piece ball valve has a 1.0619 carbon steel body, a stainless steel ball and PTFE/stainless steel seats. It is actuated with an ALPHAIR pneumatic actuator. Steam service: PS 15 bar TS 200°C
Choose your configuration
See all configurations
Réf.
CONF271322017006R
(Indicative price) €767.68
Details
Details
Option certificate 3.1 Yes
Maximum delta P (bar) 10
Actuator BR 51
Operating angle (°) 90
Shaft/stem matérial Stainless steel 316
Adjustable limit screws Yes
ATEX compatible Yes
Face to Face (mm) 130.0
Body material Carbon steel A216 WCB (1.0619)
ATEX protection mode EEx c
Number of ways 2
Bore Full
Packing gland Graphite
PS (bar) 40
Connections Flanged PN40
Seats PTFE-Stainless steel
Ball material Stainless steel 316
Surface temperature TX
TS max (°C) 220
TS min (°C) -25
Ball valve design 3-piece body
ATEX zone 1.21.2.22
Warranty period 1 year
CE Risk category III
Range Steam
Fire safe Yes

Configurations

Product Reference Price Stock
3 pieces carbon steel ball valve 765XS DN15 + RE51 271322017006R €767.68
38 pcs available in stock
3 pieces carbon steel ball valve 765XS DN15 + RES51 271322017106R €824.62
22 pcs available in stock
3 pieces carbon steel ball valve 765XS DN20 + RE51 271323017006R €840.62
21 pcs available in stock
3 pieces carbon steel ball valve 765XS DN20 + RES51 271323017106R €897.58
21 pcs available in stock
3 pieces carbon steel ball valve 765XS DN25 + RE51 271324017006R €865.12
17 pcs available in stock
3 pieces carbon steel ball valve 765XS DN25 + RES64 271324017107R €947.05
17 pcs available in stock
3 pieces carbon steel ball valve 765XS DN32 + RE51 271325017006R €949.62
6 pcs available in stock
3 pieces carbon steel ball valve 765XS DN32 + RES76 271325017108R €1,157.50
6 pcs available in stock
3 pieces carbon steel ball valve 765XS DN40 + RE64 271326017007R €1,307.30
25 pcs available in stock
3 pieces carbon steel ball valve 765XS DN40 + RES86 271326017109R €1,726.32
33 pcs available in stock
3 pieces carbon steel ball valve 765XS DN50 + RE76 271327017008R €1,625.32
17 pcs available in stock
3 pieces carbon steel ball valve 765XS DN50 + RES101 271327017110R €2,048.80
17 pcs available in stock
3 pieces carbon steel ball valve 765XS DN65 + RE76 271328017008R €2,179.50
Currently not in stock
3 pieces carbon steel ball valve 765XS DN65 + RES101 271328017110R €2,602.05
Currently not in stock
3 pieces carbon steel ball valve 765XS DN80 + RE86 271329017009R €3,019.45
10 pcs available in stock
3 pieces carbon steel ball valve 765XS DN80 + RES116 271329017111R €3,714.32
10 pcs available in stock
3 pieces carbon steel ball valve 765XS DN100 + RE101 271330017010R €3,706.12
5 pcs available in stock
3 pieces carbon steel ball valve 765XS DN100 + RES126 271330017112R €4,572.42
5 pcs available in stock
