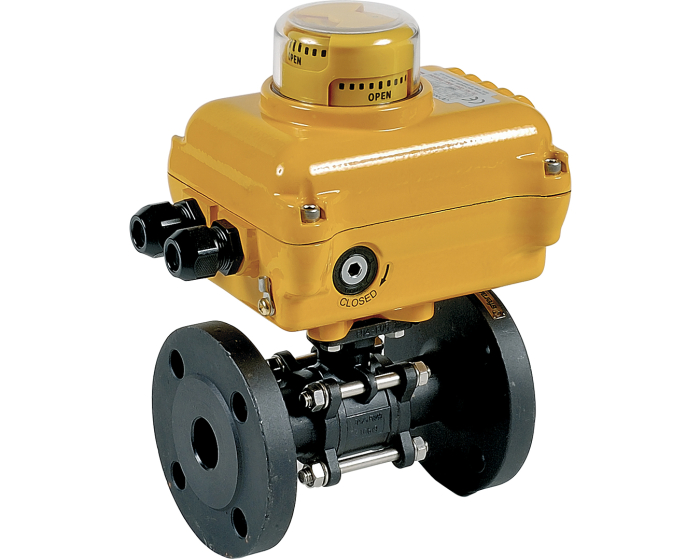

3 piece carbon steel flanged ball valve 710XS +SA/NA electric actuator

The 710 XS 3-piece body ball valve has a 1.0619 carbon steel body, stainless steel ball and PTFE/stainless steel seats. SA/NA electric actuator. PS: 40 bar, TS: -20/+200°C. Flanged attachments PN40 RF.
Choose your configuration
See all configurations
Réf.
CONF271312023010X
(Indicative price) €1,410.83
Details
Details
Option certificate 3.1 Yes
Maximum delta P (bar) 10
Shaft/stem matérial Stainless steel 316
Manual override By key
Torque (Nm) 106.4
Declutchable No
Duty service S4 duty service - 50%
Face to Face (mm) 130.0
Protection class (IP) IP 67
Torque limiter No
Recommended location Outdoor
Body material Carbon steel A216 WCB (1.0619)
Number of ways 2
Bore Full
Packing gland Graphite
PS (bar) 40
Power (W) 6
Connections Flanged PN40
Anti-condensation heater Standard
Positive safety No
Function On-off
Electric actuator series SA/NA series
Seats PTFE-Stainless steel
Operating time (s) 17.0
Voltage 230 V AC
TS max (°C) 200
TS min (°C) -20
Ball valve design 3-piece body
Warranty period 1 year
CE Risk category III
Electrical connection Per gland packing M20 x 1.5
Fire safe Yes

Configurations

Product Reference Price Stock
Produit
3 piece carbon steel flanged ball valve 710XS DN15 + SA05 230V AC
Produit
3 piece carbon steel flanged ball valve 710XS DN20 + SA05 230V AC
Produit
3 piece carbon steel flanged ball valve 710XS DN25 + SA05 230V AC
Produit
3 piece carbon steel flanged ball valve 710XS DN32 + SA05 230V AC
Produit
3 piece carbon steel flanged ball valve 710XS DN40 + SA05 230V AC
Produit
3 piece carbon steel flanged ball valve 710XS DN50 + SA05 230V AC
Produit
3 piece carbon steel flanged ball valve 710XS DN65 + NA09 230V AC
Produit
3 piece carbon steel flanged ball valve 710XS DN80 + NA09 230V AC
Produit
3 piece carbon steel flanged ball valve 710XS DN100 + NA15 230V AC

9 Item(s)
