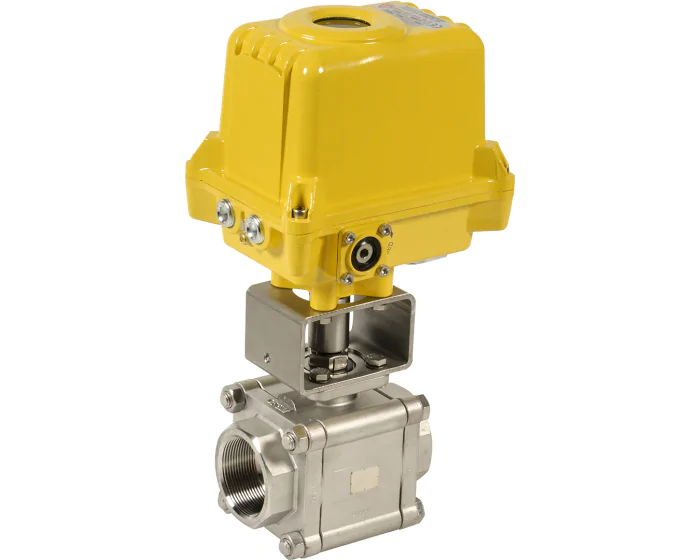

3 piece stainless steel ball valve 703 + SA-X/NA-X electric actuator

The 703 3-piece ball valve has a CF8M (1.4408) stainless steel body and ball and PTFE/carbon seats. It is actuated with an ATEX electric actuator. PS: 100 bar, TS: 220°C. Threaded G or welding BW.
Choose your configuration
See all configurations
Réf.
CONF272240023310
(Indicative price) €1,945.00
Details
Details
Option certificate 3.1 Yes
Maximum delta P (bar) 10
ATEX atmosphere IIB
Shaft/stem matérial Stainless steel 316
Manual override By key
Declutchable No
Duty service S4 duty service - 50%
Face to Face (mm) 64.8
Protection class (IP) IP 67
Torque limiter No
Recommended location Outdoor
Body material Stainless steel CF8M (1.4408)
ATEX protection mode EEx d
Number of ways 2
Bore Full
Packing gland Graphite
PS (bar) 137
Power (W) 6
Anti-condensation heater Standard
Positive safety No
Function On-off
Electric actuator type SA05-X
Electric actuator series SA-X/NA-X ATEX series
Seats PTFE-Carbon
Operating time (s) 17.0
Surface temperature T4
Voltage 230 V AC
TS max (°C) 220
TS min (°C) -30
Ball valve design 3-piece body
ATEX zone 1. 2
Warranty period 1 year
CE Risk category III
Electrical connection By gland packing ATEX
Fire safe Yes

Configurations

Product Reference Price Stock
3 piece stainless steel ball valve 703 BSP 1/4'' + SA05X 230V 230V AC 272240023310 €1,945.00
15 pcs available in stock
3 piece stainless steel ball valve 703 BSP 3/8''+ SA05X 230V AC 272241023310 €1,950.00
15 pcs available in stock
3 piece stainless steel ball valve 703 BSP 1/2'' + SA05X 230V AC 272242023310 €1,950.80
Currently not in stock
3 piece stainless steel ball valve 703 BSP 3/4'' + SA05X 230V AC 272243023310 €2,011.70
15 pcs available in stock
3 piece stainless steel ball valve 703 BSP 1'' + SA05X 230V AC 272244023310 €2,103.88
Currently not in stock
3 piece stainless steel ball valve 703 BSP 1''1/4 + SA05X 230V AC 272245023310 €2,224.12
Currently not in stock
3 piece stainless steel ball valve 703 BSP 1''1/2 + SA05X 230V AC 272246023310 €2,311.12
15 pcs available in stock
3 piece stainless steel ball valve 703 BSP 2'' + SA05X 230V AC 272247023310 €3,102.18
15 pcs available in stock
3 piece stainless steel ball valve 703 NPT 1/4'' + SA05X 230V AC 272250023310 €1,945.00
15 pcs available in stock
3 piece stainless steel ball valve 703 NPT 3/8'' + SA05X 230V AC 272251023310 €1,950.00
12 pcs available in stock
3 piece stainless steel ball valve 703 NPT 1/2'' + SA05X 230V AC 272252023310 €1,950.80
15 pcs available in stock
3 piece stainless steel ball valve 703 NPT 3/4'' + SA05X 230V AC 272253023310 €2,011.70
15 pcs available in stock
3 piece stainless steel ball valve 703 NPT 1'' + SA05X 230V AC 272254023310 €2,103.88
Currently not in stock
3 piece stainless steel ball valve 703 NPT 1''1/4 + SA05X 230V AC 272255023310 €2,224.12
Currently not in stock
3 piece stainless steel ball valve 703 NPT 1''1/2 + SA05X 230V AC 272256023310 €2,311.12
15 pcs available in stock
3 piece stainless steel ball valve 703 NPT 2'' + SA05X 230V AC 272257023310 €3,102.18
7 pcs available in stock
3 piece stainless steel ball valve 703 BW 1/4'' + SA05X 230V AC 272260023310 €1,945.00
15 pcs available in stock
3 piece stainless steel ball valve 703 BW 3/8'' + SA05X 230V AC 272261023310 €1,950.00
15 pcs available in stock
3 piece stainless steel ball valve 703 BW 1/2'' + SA05X 230V AC 272262023310 €1,950.80
15 pcs available in stock
3 piece stainless steel ball valve 703 BW 3/4'' + SA05X 230V AC 272263023310 €2,011.70
15 pcs available in stock
3 piece stainless steel ball valve 703 BW 1'' + SA05X 230V AC 272264023310 €2,103.88
Currently not in stock
3 piece stainless steel ball valve 703 BW 1''1/4 + SA05X 230V AC 272265023310 €2,224.12
Currently not in stock
3 piece stainless steel ball valve 703 BW 1''1/2 + SA05X 230V AC 272266023310 €2,311.12
15 pcs available in stock
3 piece stainless steel ball valve 703 BW 2'' + SA05X 230V AC 272267023310 €3,102.18
15 pcs available in stock
3 piece stainless steel ball valve 703 SW 1/4'' + SA05X 230V AC 272280023310 €1,945.00
15 pcs available in stock
3 piece stainless steel ball valve 703 SW 3/8'' + SA05X 230V AC 272281023310 €1,950.00
15 pcs available in stock
3 piece stainless steel ball valve 703 SW 1/2'' + SA05X 230V AC 272282023310 €1,950.80
15 pcs available in stock
3 piece stainless steel ball valve 703 SW 3/4'' + SA05X 230V AC 272283023310 €2,011.70
15 pcs available in stock
3 piece stainless steel ball valve 703 SW 1'' + SA05X 230V AC 272284023310 €2,103.88
Currently not in stock
3 piece stainless steel ball valve 703 SW 1''1/4 + SA05X 230V AC 272285023310 €2,224.12
Currently not in stock
3 piece stainless steel ball valve 703 SW 1''1/2 + SA05X 230V AC 272286023310 €2,311.12
15 pcs available in stock
3 piece stainless steel ball valve 703 SW 2'' + SA05X 230V AC 272287023310 €3,102.18
15 pcs available in stock
