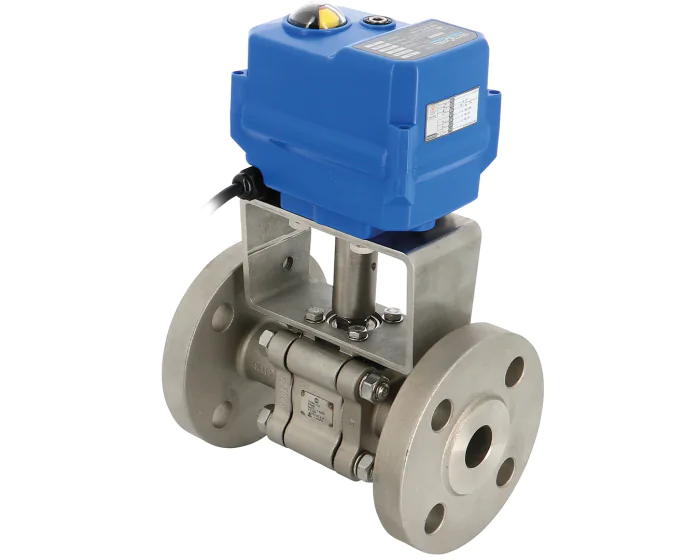

3 piece stainless steel ball valve 703 + TCR electric actuator
The 703 B 3-piece ball valve has a CF8M (1.4408) stainless steel body and ball and PTFE/carbon seats. Electric actuator TCR-N. PS: 40 bar, TS: -30/+220°C. Flanged attachments PN40 RF.
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Torque (Nm) | 106.4 |
| Declutchable | No |
| 3D indicator | Yes |
| Protection class (IP) | IP 67 |
| Torque limiter | No |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| PS (bar) | 40 |
| Connections | Flanged PN40 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR-02N |
| Electric actuator series | TCR Series |
| Seats | PTFE-Carbon |
| TS max (°C) | 220 |
| TS min (°C) | -30 |
| Ball valve design | 3-piece body |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Electrical connection | Per gland packing + 1.5 m cable |
| Fire safe | Yes |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| 3 piece stainless steel ball valve 703 DN15 + TCR-02N 230V AC | 272232024110 | €1,252.32 |
76 pcs available in stock
|
|
| 3 piece stainless steel ball valve 703 DN20 + TCR-02N 230V AC | 272233024110 | €1,327.45 |
32 pcs available in stock
|
|
| 3 piece stainless steel ball valve 703 DN25 + TCR-02N 230V AC | 272234024110 | €1,550.22 |
Currently not in stock
|
|
| 3 piece stainless steel ball valve 703 DN32 + TCR-05N 230V AC | 272235024310 | €2,001.90 |
Currently not in stock
|
|
| 3 piece stainless steel ball valve 703 DN40 + TCR-05N 230V AC | 272236024310 | €2,236.72 |
10 pcs available in stock
|
|
| 3 piece stainless steel ball valve 703 DN50 + TCR-11N 230V AC | 272237024610 | €3,450.78 |
32 pcs available in stock
|
