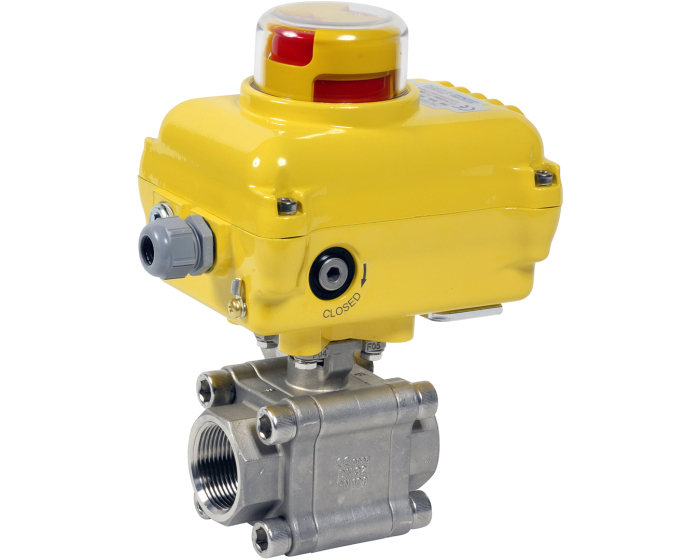

3 piece stainless steel ball valve 703XS + SA/NA electric actuator

The 703 XS 3-piece ball valve has a stainless steel 1.4408 body and ball and PTFE/glass seats. It is actuated with an SA/NA electric actuator. PS: 137 bar, TS: 180°C. Threaded G or welding BW.
Choose your configuration
See all configurations
Réf.
CONF271372023010
(Indicative price) €1,231.88
Details
Details
Option certificate 3.1 Yes
Maximum delta P (bar) 10
Shaft/stem matérial Stainless steel 316
Manual override By key
Declutchable No
Duty service S4 duty service - 50%
Protection class (IP) IP 67
Torque limiter No
Recommended location Outdoor
Body material Stainless steel CF8M (1.4408)
Number of ways 2
Bore Full
Packing gland Graphite
PS (bar) 137
Power (W) 6
Anti-condensation heater Standard
Positive safety No
Function On-off
Electric actuator type SA 05
Electric actuator series SA/NA series
Seats PTFE-Stainless steel
Operating time (s) 17.0
TS max (°C) 220
TS min (°C) -20
Ball valve design 3-piece body
Warranty period 1 year
CE Risk category III
Electrical connection Per gland packing M20 x 1.5
Fire safe Yes

Configurations

Product Reference Price Stock
3 piece stainless steel ball valve 703XS BSP 1/2'' + SA05 230V AC 271372023010 €1,231.88
48 pcs available in stock
3 piece stainless steel ball valve 703XS BSP 1/2'' + SA05 24V AC/DC 271372023011 €1,231.88
48 pcs available in stock
3 piece stainless steel ball valve 703XS BSP 3/4'' + SA05 230V AC 271373023010 €1,275.70
28 pcs available in stock
3 piece stainless steel ball valve 703XS BPS 3/4'' + SA05 24V AC/DC 271373023011 €1,275.70
28 pcs available in stock
3 piece stainless steel ball valve 703XS BSP 1'' + SA05 230V AC 271374023010 €1,342.42
43 pcs available in stock
3 piece stainless steel ball valve 703XS BSP 1''1/4 + SA05 230V AC 271375023010 €1,470.50
37 pcs available in stock
3 piece stainless steel ball valve 703XS BSP 1''1/2 + SA05 230V AC 271376023010 €1,525.68
4 pcs available in stock
3 piece stainless steel ball valve 703XS BSP 2'' + NA06 230V AC 271377023110 €2,930.38
Currently not in stock
3 piece stainless steel ball valve 703XS BW 1/2'' + SA05 230V AC 271382023010 €1,231.88
27 pcs available in stock
3 piece stainless steel ball valve 703XS BW 3/4'' + SA05 230V AC 271383023010 €1,275.70
11 pcs available in stock
3 piece stainless steel ball valve 703XS BW 1'' + SA05 230V AC 271384023010 €1,342.42
77 pcs available in stock
3 piece stainless steel ball valve 703XS BW 1''1/4 + SA05 230V AC 271385023010 €1,470.50
2 pcs available in stock
3 piece stainless steel ball valve 703XS BW 1''1/2 + SA05 230V AC 271386023010 €1,525.68
17 pcs available in stock
