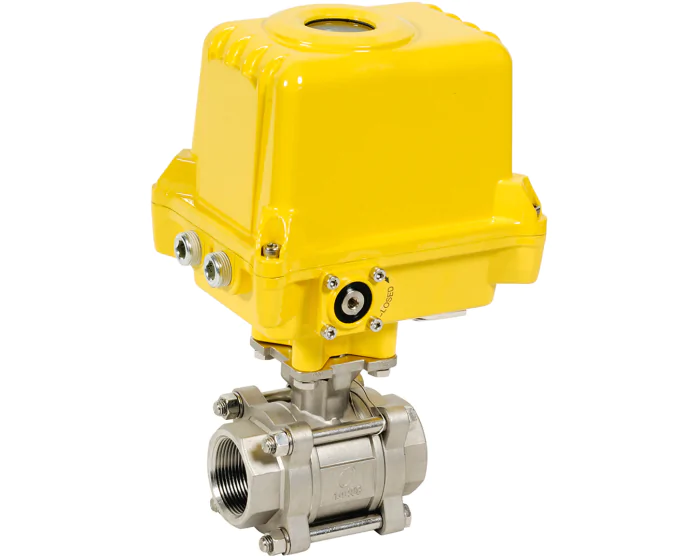

3 piece stainless steel ball valve 746-5-3XS +SA/NA electric actuator

The 3-piece ball valve 746 XS has a body and ball in stainless steel 1.4408 and seats in PTFE/glass. It is actuated with an ATEX SAX electric actuator. PS: 63 bar, TS: 180°C. G threaded.
Choose your configuration
See all configurations
Réf.
CONF272500023310
(Indicative price) €1,715.18
Details
Details
Option certificate 3.1 Yes
Maximum delta P (bar) 10
ATEX atmosphere IIB
Shaft/stem matérial Stainless steel 316
Manual override By key
Declutchable No
Duty service S4 duty service - 50%
Face to Face (mm) 65.0
Protection class (IP) IP 67
Torque limiter No
Recommended location Outdoor
Body material Stainless steel CF8M (1.4408)
ATEX protection mode EEx d
Number of ways 2
Bore Full
Packing gland PTFE
PS (bar) 63
Power (W) 6
Connections BSP FF
Anti-condensation heater Standard
Positive safety No
Function On-off
Electric actuator type SA05-X
Electric actuator series SA-X/NA-X ATEX series
Seats PTFE-Glass
Operating time (s) 17.0
Surface temperature T4
Voltage 230 V AC
TS max (°C) 180
TS min (°C) -40
Ball valve design 3-piece body
ATEX zone 1. 2
Warranty period 1 year
CE Risk category III
Electrical connection By gland packing ATEX
Fire safe No

Configurations

Product Reference Price Stock
3 piece stainless steel ball valve 746XS BSP 1/4'' + SA05X 230V AC 272500023310 €1,715.18
14 pcs available in stock
3 piece stainless steel ball valve 746XS BSP 3/8'' + SA05X 230V AC 272501023310 €1,716.68
10 pcs available in stock
3 piece stainless steel ball valve 746XS BSP 1/2'' + SA05X 230V AC 272642023310 €1,716.68
14 pcs available in stock
3 piece stainless steel ball valve 746XS BSP 3/4'' + SA05 230V AC 272643023310 €1,740.80
14 pcs available in stock
3 piece stainless steel ball valve 746XS BSP 1'' + SA05X 230V AC 272644023310 €1,806.00
14 pcs available in stock
3 piece stainless steel ball valve 746XS BSP 1''1/4 + SA05X 230V AC 272645023310 €1,862.05
14 pcs available in stock
3 piece stainless steel ball valve 746XS BSP 1''1/2 + SA05X 230V AC 272646023310 €2,010.45
14 pcs available in stock
3 piece stainless steel ball valve 746XS BSP 2''+ SA05 230V AC 272647023310 €2,140.68
14 pcs available in stock
