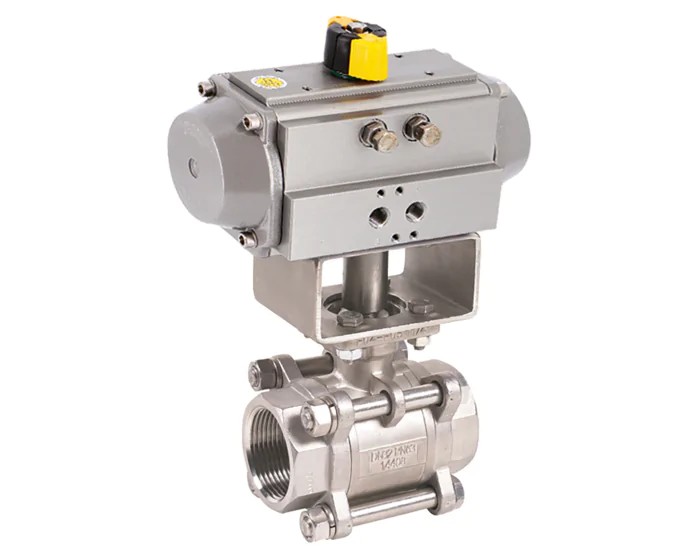

3 piece stainless steel ball valve 747-8-9 XS + RE/RES pneumatic actuator

The 747-748-749 XS series 3-piece body ball valve has a stainless steel (1.4408) body and ball and PTFE/stainless steel seats. It is actuated with an ALPHAIR pneumatic actuator. Steam service: PS: 15 bar, TS: 200°C.
Choose your configuration
See all configurations
Réf.
CONF272702017006R
(Indicative price) €671.13
Details
Details
Option certificate 3.1 Yes
Maximum delta P (bar) 10
Operating angle (°) 90
Shaft/stem matérial Stainless steel 316
Adjustable limit screws Yes
ATEX compatible Yes
Face to Face (mm) 75.0
Body material Stainless steel CF8M (1.4408)
ATEX protection mode EEx c
Number of ways 2
Bore Full
Packing gland Graphite
PS (bar) 63
Seats PTFE-Stainless steel
Ball material Stainless steel 316
Surface temperature TX
TS max (°C) 220
TS min (°C) -40
Ball valve design 3-piece body
ATEX zone 1.21.2.22
Warranty period 1 year
CE Risk category III
Range Steam
Fire safe Yes

Configurations

Product Reference Price Stock
3 pieces stainless steel ball valve BSP 747XS 1/2'' + RE51 272702017006R €671.12
68 pcs available in stock
3 pieces stainless steel ball valve BSP 747XS 1/2'' + RES51 272702017106R €728.08
22 pcs available in stock
3 pieces stainless steel ball valve BSP 747XS 3/4'' + RE51 272703017006R €715.30
62 pcs available in stock
3 pieces stainless steel ball valve BSP 747XS 3/4'' + RES64 272703017107R €797.25
36 pcs available in stock
3 pieces stainless steel ball valve BSP 747XS 1'' + RE51 272704017006R €739.30
44 pcs available in stock
3 pieces stainless steel ball valve BSP 747XS 1'' + RES64 272704017107R €821.25
36 pcs available in stock
3 pieces stainless steel ball valve BSP 747XS 1''1/4 + RE51 272705017006R €825.12
12 pcs available in stock
3 pieces stainless steel ball valve BSP 747XS 1''1/4 + RES76 272705017108R €1,033.00
12 pcs available in stock
3 pieces stainless steel ball valve BSP 747XS 1''1/2 + RE64 272706017007R €1,088.62
19 pcs available in stock
3 pieces stainless steel ball valve BSP 747XS 1''1/2 + RES86 272706017109R €1,507.95
19 pcs available in stock
3 pieces stainless steel ball valve BSP 747XS 2'' + RE76 272707017008R €1,318.12
Currently not in stock
3 pieces stainless steel ball valve BSP 747XS 2'' + RES101 272707017110R €1,741.00
Currently not in stock
3 pieces stainless steel ball valve BW 748XS DN15 + RE51 272732017006R €671.12
6 pcs available in stock
3 pieces stainless steel ball valve BW 748XS DN15 + RES51 272732017106R €728.08
6 pcs available in stock
3 pieces stainless steel ball valve BW 748XS DN20 + RE51 272733017006R €715.30
4 pcs available in stock
3 pieces stainless steel ball valve BW 748XS DN20 + RES64 272733017107R €797.25
4 pcs available in stock
3 pieces stainless steel ball valve BW 748XS DN25 + RE51 272734017006R €739.30
47 pcs available in stock
3 pieces stainless steel ball valve BW 748XS DN25 + RE51 272734017107R €821.25
36 pcs available in stock
3 pieces stainless steel ball valve BW 748XS DN32 + RE51 272735017006R €825.12
10 pcs available in stock
3 pieces stainless steel ball valve BW 748XS DN32 + RES76 272735017108R €1,033.00
10 pcs available in stock
3 pieces stainless steel ball valve BW 748XS DN40 + RE64 272736017007R €1,088.62
6 pcs available in stock
3 pieces stainless steel ball valve BW 748XS DN40 + RES86 272736017109R €1,507.95
6 pcs available in stock
3 pieces stainless steel ball valve BSP 747XS DN50 + RE76 272737017008R €1,318.12
9 pcs available in stock
3 pieces stainless steel ball valve BW 748XS DN50 + RES101 272737017110R €1,741.00
9 pcs available in stock
3 pieces stainless steel ball valve SW 749XS DN15 + RE51 272752017006R €671.12
12 pcs available in stock
3 pieces stainless steel ball valve SW 749XS DN15 + RES51 272752017106R €728.08
12 pcs available in stock
3 pieces stainless steel ball valve SW 749XS DN20 + RE51 272753017006R €715.30
16 pcs available in stock
3 pieces stainless steel ball valve SW 749XS DN20 + RES64 272753017107R €797.25
16 pcs available in stock
3 pieces stainless steel ball valve SW 749XS DN25 + RE51 272754017006R €739.30
11 pcs available in stock
3 pieces stainless steel ball valve SW 749XS DN25 + RES64 272754017107R €821.25
11 pcs available in stock
3 pieces stainless steel ball valve SW 749XS DN32 + RE51 272755017006R €825.12
15 pcs available in stock
3 pieces stainless steel ball valve SW 749XS DN32 + RES76 272755017108R €1,033.00
15 pcs available in stock
3 pieces stainless steel ball valve SW 749XS DN40 + RE64 272756017007R €1,088.62
6 pcs available in stock
3 pieces stainless steel ball valve SW 749XS DN40 + RES86 272756017109R €1,507.95
6 pcs available in stock
3 pieces stainless steel ball valve SW 749XS DN50 + RE76 272757017008R €1,318.12
7 pcs available in stock
3 pieces stainless steel ball valve SW 749XS DN50 + RES101 272757017110R €1,741.00
7 pcs available in stock
