Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By key |
| Declutchable | No |
| Duty service | S4 duty service - 50% |
| Face to Face (mm) | 75.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 63 |
| Power (W) | 6 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA 05 |
| Electric actuator series | SA/NA series |
| Seats | PTFE-Stainless steel |
| Operating time (s) | 17.0 |
| TS max (°C) | 220 |
| TS min (°C) | -40 |
| Ball valve design | 3-piece body |
| Warranty period | 1 year |
| CE | Risk category III |
| Electrical connection | Per gland packing M20 x 1.5 |
| Fire safe | Yes |

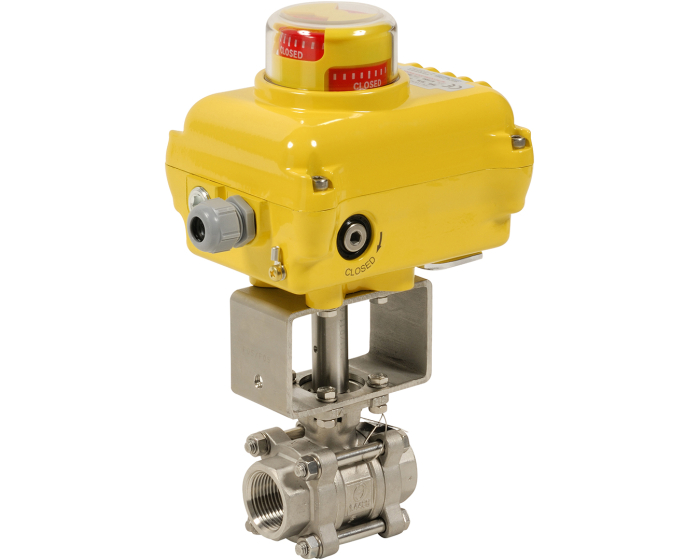

3 piece stainless steel ball valve 747-8-9XS + SA05 electric actuator
The 747 XS 3-piece ball valve has a 1.4408 stainless steel body and ball and PTFE/stainless steel seats. It is actuated with an SA05 electric actuator. PS: 63 bar, TS: 200°C. Threaded G, welding BW or SW.
