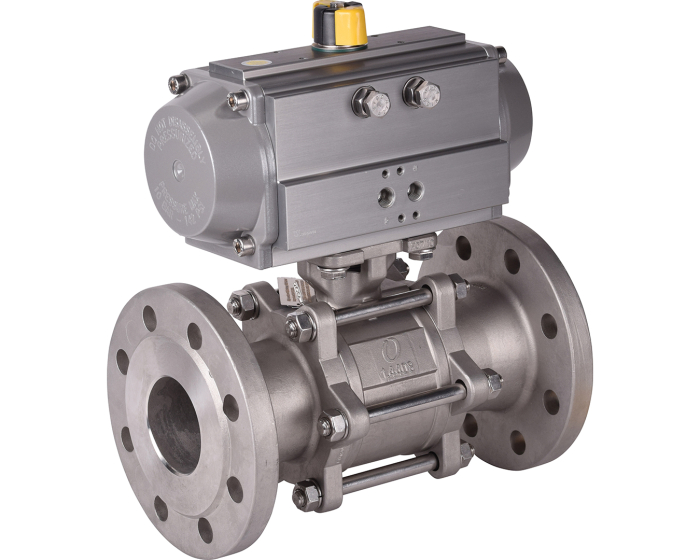

3 piece stainless steel ball valves 711 XS + RE/RES pneumatic actuator

The 711 XS series 3-piece body ball valve has a 1.4408 stainless steel body and ball and PTFE/stainless steel seats. It is actuated with an ALPHAIR pneumatic actuator. PS: 40 bar, TS: 200°C.
Choose your configuration
See all configurations
Réf.
CONF272108017008R
(Indicative price) €2,262.05
Details
Details
Option certificate 3.1 Yes
Maximum delta P (bar) 10
Actuator BR 76
Operating angle (°) 90
Shaft/stem matérial Stainless steel 316
Adjustable limit screws Yes
ATEX compatible Yes
Face to Face (mm) 290.0
Body material Stainless steel CF8M (1.4408)
ATEX protection mode EEx c
Number of ways 2
Bore Full
Packing gland Graphite
PS (bar) 40
Connections Flanged PN40
Seats PTFE-Stainless steel
Ball material Stainless steel 316
Surface temperature TX
TS max (°C) 200
TS min (°C) -30
Ball valve design 3-piece body
ATEX zone 1.21.2.22
Warranty period 1 year
CE Risk category III
Range Industry
Fire safe Yes

Configurations

Product Reference Price Stock
3 pieces stainless steel ball valves 711XS DN65 + RE76 272108017008R €2,262.05
Currently not in stock
3 pieces stainless steel ball valves 711XS DN65 + RES101 272108017110R €2,686.92
Currently not in stock
3 pieces stainless steel ball valves 711XS DN80 + RE86 272109017009R €3,341.32
3 pcs available in stock
3 pieces stainless steel ball valves 711XS DN80 + RES116 272109017111R €3,967.75
3 pcs available in stock
3 pieces stainless steel ball valves 711XS DN100 + RE101 272110017010R €4,926.42
4 pcs available in stock
