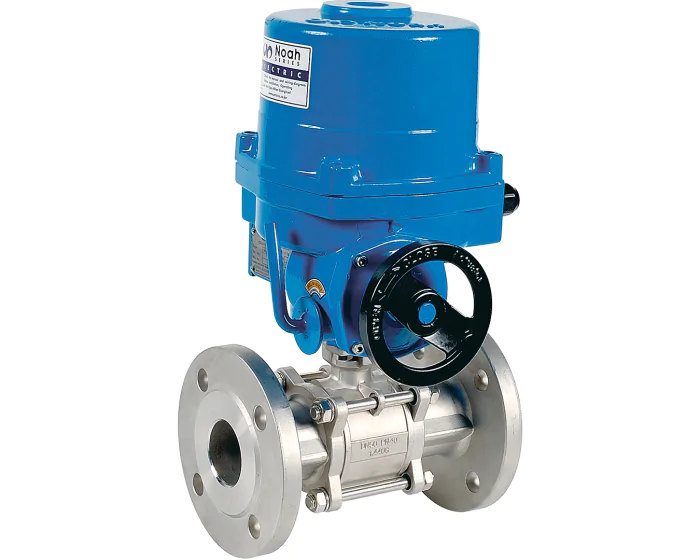

3 piece stainless steel flanged ball valve 711XS +NA electric actuator
The 3-piece ball valve 711 XS has a CF8M (1.4408) stainless steel body and ball and PTFE/stainless steel seats. Electric actuator SA/NA. PS: 40 bar, TS: -30/+200°C. Flanged attachments PN40 RF.
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By handwheel |
| Torque (Nm) | 106.4 |
| Declutchable | Yes |
| Duty service | S2 duty service - 70% |
| Face to Face (mm) | 290.0 |
| Protection class (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 40 |
| Power (W) | 25 |
| Connections | Flanged PN40 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | NA 09 |
| Electric actuator series | SA/NA series |
| Seats | PTFE-Stainless steel |
| Operating time (s) | 17.0 |
| TS max (°C) | 200 |
| TS min (°C) | -30 |
| Ball valve design | 3-piece body |
| Warranty period | 1 year |
| CE | Risk category III |
| Electrical connection | Per gland packing M20 x 1.5 |
| Fire safe | Yes |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| 3 piece stainless steel flanged ball valve 711XS DN65 + NA09 230V AC | 272108023120X | €3,847.05 |
1 pcs available in stock
|
|
| 3 piece stainless steel flanged ball valve 711XS DN80 + NA09 230V AC | 272109023120X | €4,531.78 |
1 pcs available in stock
|
|
| 3 piece stainless steel flanged ball valve 711XS DN100 + NA15 230V AC | 272110023130X | €6,226.18 |
2 pcs available in stock
|
