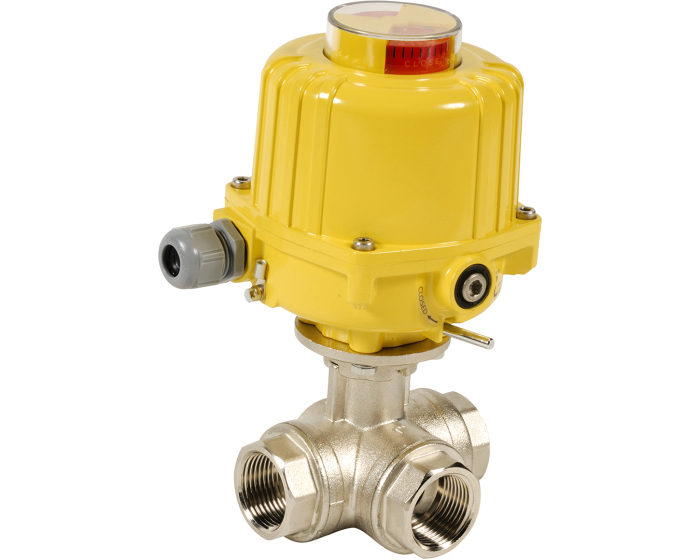

3 way brass ball valve 513L-514T + SA electric actuator
The 513L/514T 3-way ball valve has a CW 617 N brass body and ball, PTFE seats. It is actuated by an SA03 electric actuator. ACS approval. PS: 16 bar, TS: 100°C. Threaded G.
Documentation
Details
| Option certificate 3.1 | No |
|---|---|
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Brass 614N |
| Manual override | By key |
| Torque (Nm) | 106.4 |
| Declutchable | Yes |
| Duty service | S4 duty service - 50% |
| Protection class (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Brass CW617N |
| Number of ways | 3 |
| Bore | Reduced |
| PS (bar) | 16 |
| Power (W) | 18 |
| Connections | BSP FF |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA 03 |
| Electric actuator series | SA/NA series |
| Seats | PTFE |
| Operating time (s) | 12.0 |
| TS max (°C) | 100 |
| TS min (°C) | -10 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Electrical connection | Per gland packing M20 x 1.5 |
| Fire safe | No |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| 3 way brass ball valve 513-L 1/4'' + SA03 230V AC | 275010023000 | €775.00 |
3 pcs available in stock
|
|
| 3 way brass ball valve 513-L 1/4'' + SA03 24V AC/DC | 275010023001 | €775.00 |
3 pcs available in stock
|
|
| 3 way brass ball valve 513-L 3/8'' + SA03 230V AC | 275011023000 | €787.50 |
14 pcs available in stock
|
|
| 3 way brass ball valve 513-L 1/2'' + SA03 230V AC | 275012023000 | €787.50 |
7 pcs available in stock
|
|
| 3 way brass ball valve 513-L 3/4'' + SA03 230V AC | 275013023000 | €800.00 |
16 pcs available in stock
|
|
| 3 way brass ball valve 513-L 1/4'' + SA03 230V AC | 275014023000 | €875.00 |
7 pcs available in stock
|
|
| 3 way brass ball valve 513-L 1/4'' + SA03 24V AC/DC | 275014023001 | €875.00 |
7 pcs available in stock
|
|
| 3 way brass ball valve 514-T 1/4'' + SA03 230V AC | 275030023000 | €700.28 |
2 pcs available in stock
|
|
| 3 way brass ball valve 514-T 3/8'' + SA03 230V AC | 275031023000 | €702.18 |
6 pcs available in stock
|
|
| 3 way brass ball valve 514-T 1/2'' + SA03 230V AC | 275032023000 | €702.18 |
20 pcs available in stock
|
|
| 3 way brass ball valve 514-T 3/4'' + SA03 230V AC | 275033023000 | €709.10 |
22 pcs available in stock
|
|
| 3 way brass ball valve 514-T 1'' + SA03 230V AC | 275034023000 | €794.30 |
10 pcs available in stock
|
|
| 3 way brass ball valve 514-T 1'' + SA03 24V AC/DC | 275034023001 | €794.30 |
10 pcs available in stock
|
