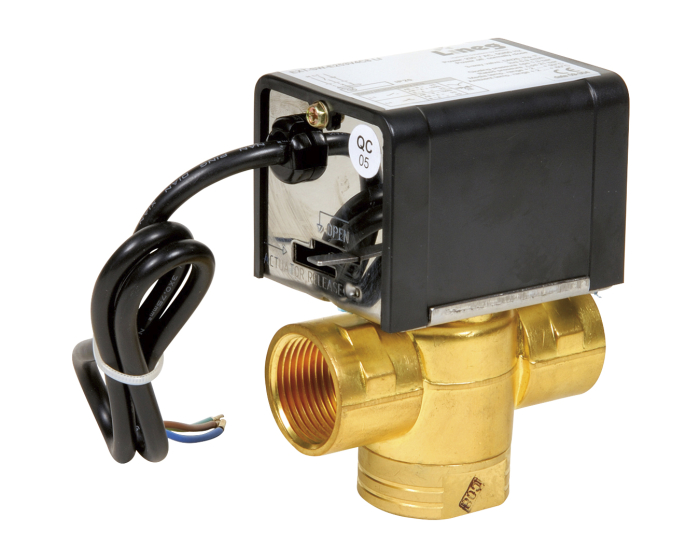

3 way diverting valve - 2 thread 230V actuator - female 1''
Normally closed 3 ways valve with spring return. Ps (bar): 1,3. 2-wire 230 volt motor. Max. differential pressure: 1.3 bar. Max. glycol: 50 %. Opening time: 18 s. and closing time: 5 s.
Réf.
VDL3V26
(Indicative price)
€185.00
324 pcs available in stock
Documentation
Details
| Thread diameter | 1'' F |
|---|---|
| Torque (Nm) | 106.4 |
| Protection class (IP) | IP 20 |
| Body material | Brass |
| Number of ways | 3 |
| Temperature range (°C) | 2°C to 93°C |
| Kvs (m³/h) | 6.9 |
