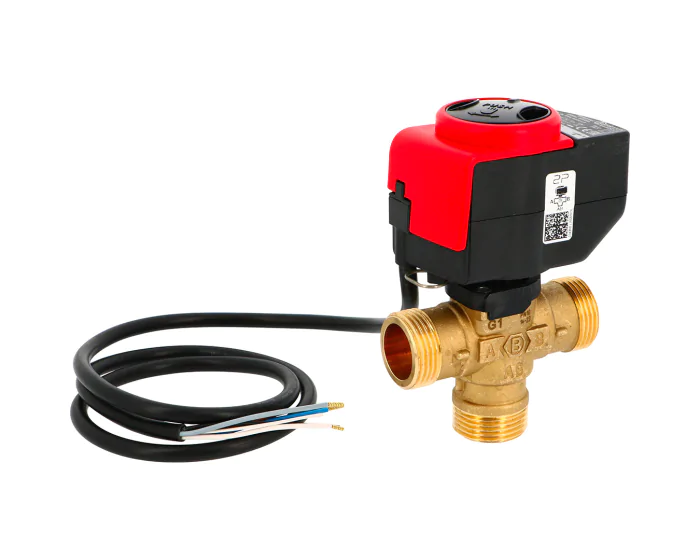

3 way diverting valve - 3 thread 230V actuator - male 1''
Integrated 3-wire 230 V motor with 60° rotation cycle. Indication on the motor of the position of the ball. Maximum differential pressure: 1 bar. Operating time 8 s. Supplied with quick connector and 1m cable.
Réf.
VDB3V26M
(Indicative price)
€282.50
68 pcs available in stock
Documentation
Details
| Thread diameter | 1'' M |
|---|---|
| Torque (Nm) | 106.4 |
| Protection class (IP) | IP 40 |
| Body material | Brass |
| Number of ways | 3 |
| Temperature range (°C) | 0°C to 95°C |
| Kvs (m³/h) | 7.5 |
