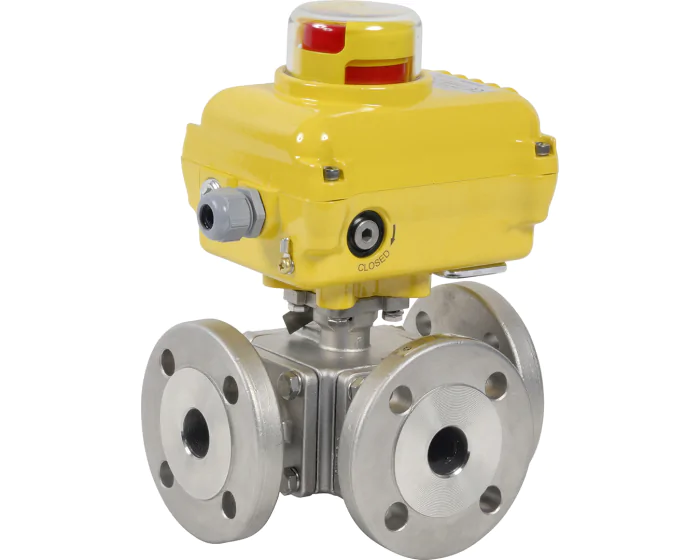

3 way st. steel flanged ball valve 785L-786T + SA/NA electric actuator
The 785 L or 786 T 3-way ball valve has a stainless steel 1.4408 body and ball and PTFE seats. It is actuated with an SA/NA electric actuator. PS: 16 bar, TS: 150°C. Flanged attachments PN16 RF
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By key |
| Torque (Nm) | 106.4 |
| Declutchable | No |
| Duty service | S4 duty service - 50% |
| Protection class (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 3 |
| Bore | Full |
| Packing gland | PTFE |
| PS (bar) | 16 |
| Power (W) | 6 |
| Connections | Flanged PN16 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA 05 |
| Electric actuator series | SA/NA series |
| Seats | PTFE-Glass |
| Operating time (s) | 17.0 |
| TS max (°C) | 150 |
| TS min (°C) | -30 |
| Warranty period | 1 year |
| CE | Risk category III |
| Electrical connection | Per gland packing M20 x 1.5 |
| Fire safe | No |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| 3 way stainless steel flanged ball valve 785-L DN25 + SA05 230V AC | 275374023010 | €2,189.95 |
13 pcs available in stock
|
|
| 3 way stainless steel flanged ball valve 785-L DN32 + SA05 230V AC | 275375023010 | €2,290.00 |
8 pcs available in stock
|
|
| 3 way stainless steel flanged ball valve 785-L DN32 + SA05 24V AC/DC | 275375023011 | €2,290.00 |
8 pcs available in stock
|
|
| 3 way stainless steel flanged ball valve 785-L DN40 + NA06 230V AC | 275376023110 | €4,141.22 |
7 pcs available in stock
|
|
| 3 way stainless steel flanged ball valve 785-L DN50 + NA09 230V AC | 275377023120 | €4,871.00 |
7 pcs available in stock
|
|
| 3 way stainless steel flanged ball valve 785-L DN65 + NA15 230V AC | 275378023130 | €6,477.00 |
4 pcs available in stock
|
|
| 3 way stainless steel flanged ball valve 785-L DN80 + NA28 230V AC | 275379023150 | €8,130.95 |
Currently not in stock
|
|
| 3 way stainless steel flanged ball valve 785-L DN100 + NA28 230V AC | 275380023150 | €14,343.10 |
6 pcs available in stock
|
|
| 3 way stainless steel flanged ball valve 785-L DN125 + NA60 230V AC | 275381023180 | €18,605.05 |
1 pcs available in stock
|
|
| 3 way stainless steel flanged ball valve 785-L DN150 + NA60 230V AC | 275382023180 | €23,916.05 |
6 pcs available in stock
|
|
| 3 way stainless steel flanged ball valve 786-T DN25 + SA05 230V AC | 275384023010 | €1,913.88 |
27 pcs available in stock
|
|
| 3 way stainless steel flanged ball valve 786-T DN32 + SA05 230V AC | 275385023010 | €2,230.10 |
17 pcs available in stock
|
|
| 3 way stainless steel flanged ball valve 786-T DN32 + SA05 24V AC/DC | 275385023011 | €2,205.18 |
17 pcs available in stock
|
|
| 3 way stainless steel flanged ball valve 786-T DN40 + NA06 230V AC | 275386023110 | €3,466.30 |
7 pcs available in stock
|
|
| 3 way stainless steel flanged ball valve 786-T DN50 + NA09 230V AC | 275387023120 | €4,619.78 |
7 pcs available in stock
|
|
| 3 way stainless steel flanged ball valve 786-T DN65 + NA15 230V AC | 275388023130 | €5,689.12 |
Currently not in stock
|
|
| 3 way stainless steel flanged ball valve 786-T DN80 + NA28 230V AC | 275389023150 | €7,604.72 |
7 pcs available in stock
|
|
| 3 way stainless steel flanged ball valve 786-T DN100 + NA28 230V AC | 275390023150 | €10,147.08 |
4 pcs available in stock
|
|
| 3 way stainless steel flanged ball valve 786-T DN125 + NA60 230V AC | 275391023180 | €16,475.12 |
4 pcs available in stock
|
|
| 3 way stainless steel flanged ball valve 786-T DN150 + NA60 230V AC | 275392023180 | €21,919.35 |
6 pcs available in stock
|
