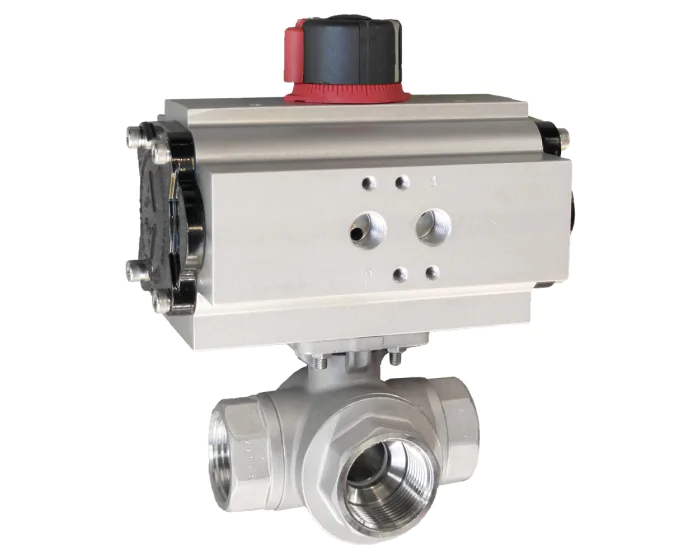

3 way stainless steel ball valve 1370L/AD + ADA
High-performance pneumatic actuator, available in double-acting (ADA) versions. Designed for reliable valve control, it features a rack and pinion system, an ISO 5211 coupling, and a robust anodized aluminum construction.
Details
Three way ball valve with floating ball and reduced bore
Body in stainless steel ASTM A351 Gr. CF8M
Ball in stainless steel AISI 316
L-port
Seats in PTFE + 15% glass fiber
Max. working pressure: 69 bar (1/2'' to 11/4''), 55 bar (11/2'' to 2'')
Connection: BSP threaded
ISO mounting flange
With pneumatic actuator double acting type AD
Details
In categories : Pneumatic actuated 3 way ball valves
