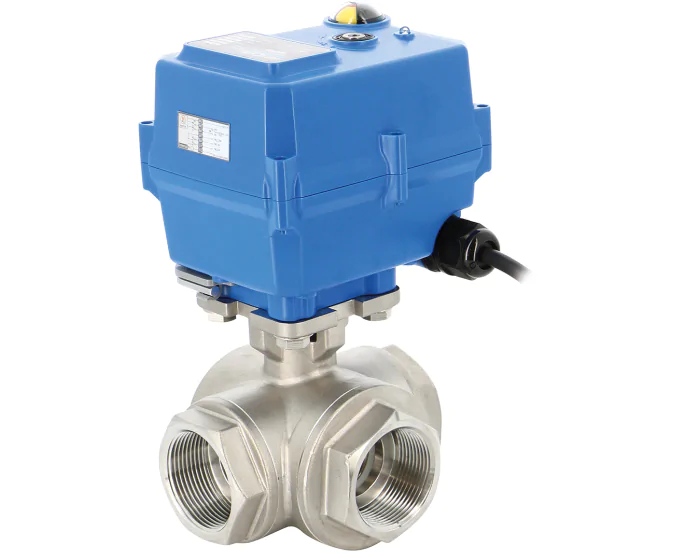

3 way stainless steel ball valve 780L-781TXS + TCR electric actuator
The 780/781 XS stainless steel 3-way ball valve has a CF8M (1.4408) stainless steel body and ball and PTFE seats. It is actuated with a TCR-N electric actuator. PS: 63 bar - TS: -30/+180°C. G threaded.
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Torque (Nm) | 106.4 |
| Declutchable | No |
| 3D indicator | Yes |
| Protection class (IP) | IP 67 |
| Torque limiter | No |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 3 |
| Bore | Reduced |
| PS (bar) | 63 |
| Connections | BSP FF |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR-02N |
| Electric actuator series | TCR Series |
| Seats | PTFE |
| TS max (°C) | 180 |
| TS min (°C) | -30 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Electrical connection | Per gland packing + 1.5 m cable |
| Fire safe | No |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| 3 way stainless steel ball valve 780XS-L 1/4'' + TCR-02N 230V AC | 275400024110 | €800.00 |
28 pcs available in stock
|
|
| 3 way stainless steel ball valve 780XS-L 1/4'' + TCR-02N 24V AC/DC | 275400024111 | €800.00 |
16 pcs available in stock
|
|
| 3 way stainless steel ball valve 780XS-L 3/8'' + TCR-02N 230V AC | 275401024110 | €812.50 |
13 pcs available in stock
|
|
| 3 way stainless steel ball valve 780XS-L 3/8'' + TCR-02N 24V AC/DC | 275401024111 | €812.50 |
13 pcs available in stock
|
|
| 3 way stainless steel ball valve 780XS-L 1/2'' + TCR-02N 230V AC | 275402024110 | €825.00 |
48 pcs available in stock
|
|
| 3 way stainless steel ball valve 780XS-L 1/2'' + TCR-02N 24V AC/DC | 275402024111 | €825.00 |
16 pcs available in stock
|
|
| 3 way stainless steel ball valve 780XS-L 3/4'' + TCR-02N 230V AC | 275403024110 | €875.00 |
20 pcs available in stock
|
|
| 3 way stainless steel ball valve 780XS-L 3/4'' + TCR-02N 24V AC/DC | 275403024111 | €875.00 |
16 pcs available in stock
|
|
| 3 way stainless steel ball valve 780XS-L 1'' + TCR-02N 230V AC | 275404024110 | €1,000.00 |
15 pcs available in stock
|
|
| 3 way stainless steel ball valve 780XS-L 1'' + TCR-02N 24V AC/DC | 275404024111 | €1,000.00 |
15 pcs available in stock
|
|
| 3 way stainless steel ball valve 780XS-L 1''1/4 + TCR-05N 230V AC | 275405024310 | €1,174.35 |
7 pcs available in stock
|
|
| 3 way stainless steel ball valve 780XS-L 1''1/4 + TCR-05N 24V AC/DC | 275405024311 | €1,174.35 |
7 pcs available in stock
|
|
| 3 way stainless steel ball valve 780XS-L 1''1/2 + TCR-05N 230V AC | 275406024310 | €1,475.00 |
12 pcs available in stock
|
|
| 3 way stainless steel ball valve 780XS-L 1''1/2 + TCR-05N 24V AC/DC | 275406024311 | €1,475.00 |
12 pcs available in stock
|
|
| 3 way stainless steel ball valve 780XS-L 2'' + TCR-05N 230V AC | 275407024310 | €1,700.00 |
2 pcs available in stock
|
|
| 3 way stainless steel ball valve 780XS-L 2'' + TCR-05N 24V AC/DC | 275407024311 | €1,700.00 |
2 pcs available in stock
|
|
| 3 way stainless steel ball valve 781XS-T 1/4'' + TCR-02N 230V AC | 275420024110 | €778.85 |
1 pcs available in stock
|
|
| 3 way stainless steel ball valve 781XS-T 1/4'' + TCR-02N 24V AC/DC | 275420024111 | €778.85 |
1 pcs available in stock
|
|
| 3 way stainless steel ball valve 781XS-T 3/8'' + TCR-02N 230V AC | 275421024110 | €784.40 |
34 pcs available in stock
|
|
| 3 way stainless steel ball valve 781XS-T 3/8'' + TCR-02N 24V AC/DC | 275421024111 | €784.40 |
16 pcs available in stock
|
|
| 3 way stainless steel ball valve 781XS-T 1/2'' + TCR-02N 230V AC | 275422024110 | €806.68 |
35 pcs available in stock
|
|
| 3 way stainless steel ball valve 781XS-T 1/2'' + TCR-02N 24V AC/DC | 275422024111 | €806.68 |
16 pcs available in stock
|
|
| 3 way stainless steel ball valve 781XS-T 3/4'' + TCR-02N 230V AC | 275423024110 | €834.50 |
43 pcs available in stock
|
|
| 3 way stainless steel ball valve 781XS-T 3/4'' + TCR-02N 24V AC/DC | 275423024111 | €834.50 |
16 pcs available in stock
|
|
| 3 way stainless steel ball valve 781XS-T 1'' + TCR-02N 230V AC | 275424024110 | €917.92 |
35 pcs available in stock
|
|
| 3 way stainless steel ball valve 781XS-T 1'' + TCR-02N 24V AC/DC | 275424024111 | €953.82 |
16 pcs available in stock
|
|
| 3 way stainless steel ball valve 781XS-T 1''1/4 + TCR-05N 230V AC | 275425024310 | €1,158.60 |
11 pcs available in stock
|
|
| 3 way stainless steel ball valve 781XS-T 1''1/4 + TCR-05N 24V AC/DC | 275425024311 | €1,174.35 |
11 pcs available in stock
|
|
| 3 way stainless steel ball valve 781XS-T 1''1/2 + TCR-05N 230V AC | 275426024310 | €1,401.95 |
13 pcs available in stock
|
|
| 3 way stainless steel ball valve 781XS-T 1''1/2 + TCR-05N 24V AC/DC | 275426024311 | €1,401.95 |
13 pcs available in stock
|
|
| 3 way stainless steel ball valve 781XS-T 2'' + TCR-05N 230V AC | 275427024310 | €1,557.72 |
7 pcs available in stock
|
|
| 3 way stainless steel ball valve 781XS-T 2'' + TCR-05N 24V AC/DC | 275427024311 | €1,557.72 |
7 pcs available in stock
|
