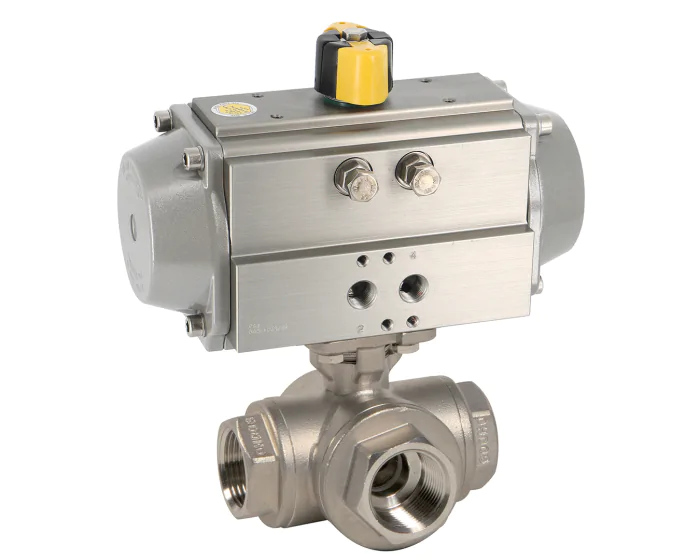

3 way stainless steel ball valve 780XS-L/781XS-T + RE/RES pneumatic actuator

The 780XS-L/781XS-T series 3-way ball valve has a CF8M (1.4408) stainless steel body and ball and PTFE seats. It is actuated with an ALPHAIR pneumatic actuator. PS: 63 bar, TS: 180°C.
Choose your configuration
See all configurations
Réf.
CONF275400017004R
(Indicative price) €540.78
Details
Details
Option certificate 3.1 Yes
Maximum delta P (bar) 10
Actuator RE 43
Operating angle (°) 90
Shaft/stem matérial Stainless steel 316
Adjustable limit screws Yes
ATEX compatible Yes
Face to Face (mm) 75.7
Body material Stainless steel CF8M (1.4408)
ATEX protection mode EEx c
Number of ways 3
Bore Reduced
Packing gland PTFE
PS (bar) 63
Connections BSP FF
Seats PTFE
Ball material Stainless steel 316
Surface temperature TX
TS max (°C) 180
TS min (°C) -10
ATEX zone 1.21.2.22
Warranty period 1 year
CE Risk category III
Range Industry
Fire safe No

Configurations

Product Reference Price Stock
Produit
3 way stainless steel ball valve BSP L-port 780XS 1/4'' + RE43
Produit
3 way stainless steel ball valve BSP L-port 780XS 1/4'' + RES43
Produit
3 way stainless steel ball valve BSP L-port 780XS 3/8'' + RE43
Produit
3 way stainless steel ball valve BSP L-port 780XS 3/8'' + RES43
Produit
3 way stainless steel ball valve BSP L-port 780XS 1/2'' + RE43
Produit
3 way stainless steel ball valve BSP L-port 780XS 1/2'' + RES43
Produit
3 way stainless steel ball valve BSP L-port 780XS 3/4'' + RE43
Produit
3 way stainless steel ball valve BSP L-port 780XS 3/4'' + RES64
Produit
3 way stainless steel ball valve BSP L-port 780XS 1'' + RE43
Produit
3 way stainless steel ball valve BSP L-port 780XS 1'' + RES64
Produit
3 way stainless steel ball valve BSP L-port 780XS 1''1/4 + RE64
Produit
3 way stainless steel ball valve BSP L-port 780XS 1''1/4 + RES76
Produit
3 way stainless steel ball valve BSP L-port 780XS 1''1/2 + RE64
Produit
3 way stainless steel ball valve BSP L-port 780XS 1''1/2 + RES86
Produit
3 way stainless steel ball valve BSP L-port 780XS 2'' + RE76
Produit
3 way stainless steel ball valve BSP L-port 780XS 2'' + RES101

16 Item(s)
