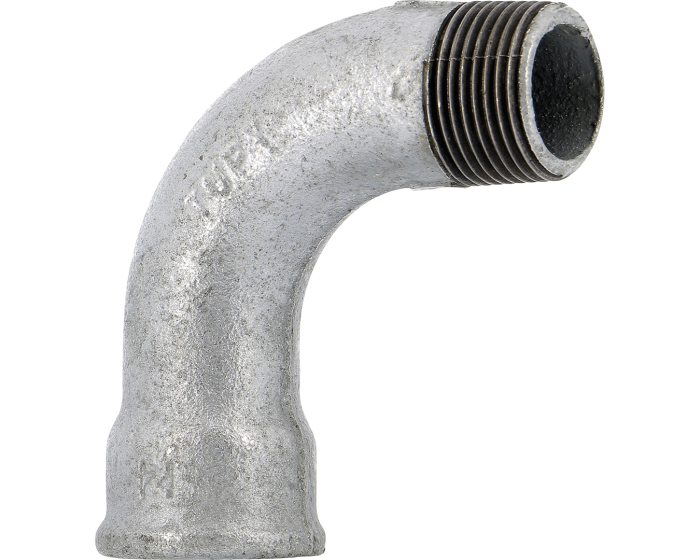

90° long sweep bend male/female - Galvanised - 1

Syveco offers the Series 1G malleable iron fitting from the Tupy range, with a 90° wide radius male/female curve, galvanised for cold water, hot water, fire-fighting systems, heating, compressed air, sprinklers
Choose your configuration
See all configurations
Réf.
CONFSF1G15
(Indicative price) €4.25
Details
Details
Construction standard NF EN 10242 - ISO 49
Brand TUPY
Thread standard ISO 7-1 R/ISO 7-1 Rp
Type of coating Hot-dip galvanised
Material Malleable iron EN-GJMB-350-10
Application Industry
Torque (Nm) 106.4
DN 15
Fluid Cold water
PS (bar) 25
Connections BSP MF
TS max (°C) 300
TS min (°C) -20
Drinking water compatibility Yes
Warranty period 2 years
Type of fitting Malleable iron
Fitting shape 90° bend large radius
Dimensions (Fitting) 15

Configurations

Product Reference Price Stock
90° long sweep bend male/female - Galvanised - 1 4'' SF1G102 €212.68
Currently not in stock
90° long sweep bend male/female - Galvanised - 1 3/8'' SF1G12 €5.20
Currently not in stock
90° long sweep bend male/female - Galvanised - 1 1/2'' SF1G15 €4.70
634 pcs available in stock
90° long sweep bend male/female - Galvanised - 1 3/4'' SF1G20 €8.12
543 pcs available in stock
90° long sweep bend male/female - Galvanised - 1 1'' SF1G26 €11.05
125 pcs available in stock
90° long sweep bend male/female - Galvanised - 1 1''1/4 SF1G33 €19.05
209 pcs available in stock
90° long sweep bend male/female - Galvanised - 1 1''1/2 SF1G40 €25.18
367 pcs available in stock
90° long sweep bend male/female - Galvanised - 1 1/8'' SF1G5 €9.82
303 pcs available in stock
90° long sweep bend male/female - Galvanised - 1 2'' SF1G50 €40.68
132 pcs available in stock
90° long sweep bend male/female - Galvanised - 1 2''1/2'' SF1G66 €91.32
12 pcs available in stock
90° long sweep bend male/female - Galvanised - 1 1/4'' SF1G8 €4.25
274 pcs available in stock
90° long sweep bend male/female - Galvanised - 1 3'' SF1G80 €117.18
169 pcs available in stock
