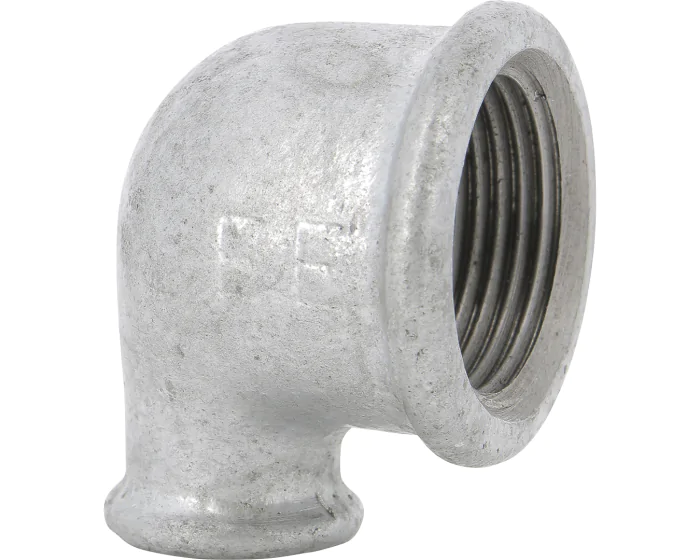

90° reducing elbow female - Galvanised - 90R

Syveco offers the Series 90R malleable iron fitting from the Tupy range, a small radius 90° elbow, female/female, galvanised, for cold water, hot water, fire-fighting systems, heating, compressed air, sprinklers
Choose your configuration
See all configurations
Réf.
CONFSF90G1512
(Indicative price) €2.18
Details
Details
Construction standard NF EN 10242 - ISO 49
Brand TUPY
Thread standard ISO 7-1 Rp
Type of coating Hot-dip galvanised
Material Malleable iron EN-GJMB-350-10
Application Industry
Torque (Nm) 106.4
DN 15
Fluid Cold water
PS (bar) 25
Connections BSP FF
TS max (°C) 300
TS min (°C) -20
Drinking water compatibility Yes
Warranty period 2 years
Type of fitting Malleable iron
Fitting shape 90° reduced elbow small radius
Dimensions (Fitting) 15x12

Configurations

Product Reference Price Stock
90° reducing elbow female - Galvanised - 90R 3/8'' / 1/4'' SF90G128 €3.18
1840 pcs available in stock
90° reducing elbow female - Galvanised - 90R 1/2'' / 3/8'' SF90G1512 €3.18
677 pcs available in stock
90° reducing elbow female - Galvanised - 90R 1/2'' / 1/4'' SF90G158 €2.88
144 pcs available in stock
90° reducing elbow female - Galvanised - 90R 3/4'' / 3/8'' SF90G2012 €2.55
125 pcs available in stock
90° reducing elbow female - Galvanised - 90R 3/4'' / 1/2'' SF90G2015 €3.50
196 pcs available in stock
90° reducing elbow female - Galvanised - 90R 1'' / 3/8'' SF90G2612 €3.30
99 pcs available in stock
90° reducing elbow female - Galvanised - 90R 1'' / 1/2'' SF90G2615 €5.18
Currently not in stock
90° reducing elbow female - Galvanised - 90R 1'' / 3/4'' SF90G2620 €5.42
756 pcs available in stock
90° reducing elbow female - Galvanised - 90R 1''1/4 / 1/2'' SF90G3315 €15.42
302 pcs available in stock
90° reducing elbow female - Galvanised - 90R 1''1/4 / 3/4'' SF90G3320 €11.05
1106 pcs available in stock
90° reducing elbow female - Galvanised - 90R 1''1/4 / 1'' SF90G3326 €8.80
557 pcs available in stock
90° reducing elbow female - Galvanised - 90R 1''1/2 / 3/4'' SF90G4020 €13.50
276 pcs available in stock
90° reducing elbow female - Galvanised - 90R 1''1/2 / 1'' SF90G4026 €12.88
1663 pcs available in stock
90° reducing elbow female - Galvanised - 90R 1''1/2 / 1''1/4 SF90G4033 €10.12
33 pcs available in stock
90° reducing elbow female - Galvanised - 90R 2'' / 1'' SF90G5026 €26.12
87 pcs available in stock
90° reducing elbow female - Galvanised - 90R 2'' / 1''1/4 SF90G5033 €45.42
91 pcs available in stock
90° reducing elbow female - Galvanised - 90R 2'' / 1''1/2 SF90G5040 €12.38
105 pcs available in stock
90° reducing elbow female - Galvanised - 90R 2''1/2 / 2'' SF90G6650 €32.82
96 pcs available in stock
90° reducing elbow female - Galvanised - 90R 1/4'' / 1/8'' SF90G85 €2.18
10 pcs available in stock
