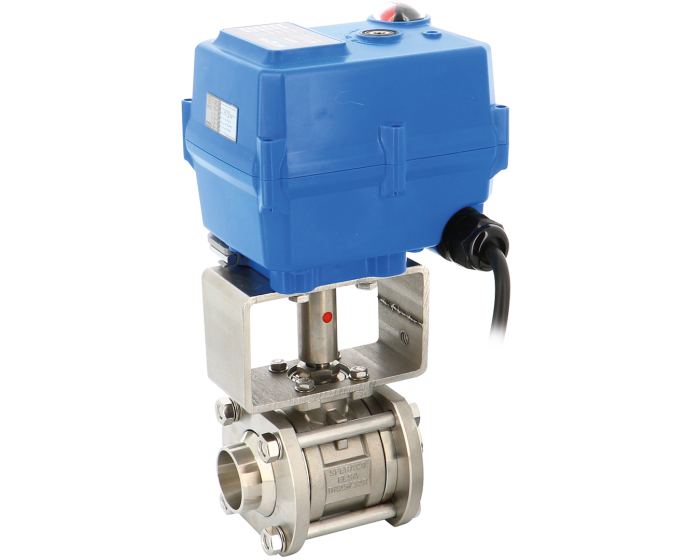

Ball valve ELIT + TCR-NH quick acting electric actuator
ELSA ball valve with rotating flanges. Body and ball in stainless steel. Seats, body gasket and chevron packing gland in TFM 1600. Full bore. TCR fast electric actuator. Bracket and coupler assembly according to EN 15081.
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 316L |
| Manual override | By key |
| Torque (Nm) | 106.4 |
| Declutchable | No |
| Starts/h (engine) | 10 |
| Duty service | S4 duty service - 30% |
| 3D indicator | Yes |
| Protection class (IP) | IP 67 |
| Torque limiter | No |
| Body material | Stainless steel CF3M (1.4409) |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | TFM 1600 |
| PS (bar) | 63 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR-02NH |
| Electric actuator series | TCR Series |
| Seats | TFM 1600 |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 180 |
| TS min (°C) | -50 |
| Ball valve design | 3-piece body |
| Warranty period | 1 year |
| CE | Risk category III |
| Electrical connection | Per gland packing + 1.5 m cable |
| Fire safe | No |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Stainless steel ball valve ELIT BW ISO DN08 + TCR02-NH | 271100024130 | €3,837.92 |
1 pcs available in stock
|
|
| Stainless steel ball valve ELIT BW ISO DN10 + TCR02-NH | 271101024130 | €3,855.05 |
1 pcs available in stock
|
|
| Stainless steel ball valve ELIT BW ISO DN15 + TCR02-NH | 271102024130 | €3,929.40 |
1 pcs available in stock
|
|
| Stainless steel ball valve ELIT BW ISO DN20 + TCR02-NH | 271103024130 | €4,040.18 |
1 pcs available in stock
|
|
| Stainless steel ball valve ELIT BW ISO DN25 + TCR05-NH | 271104024330 | €4,126.00 |
5 pcs available in stock
|
|
| Stainless steel ball valve ELIT BW ISO DN32 + TCR05-NH | 271105024330 | €4,355.42 |
5 pcs available in stock
|
|
| Stainless steel ball valve ELIT BW ISO DN40 + TCR05-NH | 271106024330 | €4,746.20 |
5 pcs available in stock
|
|
| Stainless steel ball valve ELIT BW ISO DN50 + TCR11-NH | 271107024630 | €4,796.72 |
1 pcs available in stock
|
|
| Stainless steel ball valve ELIT SW DN08 + TCR02-NH | 271110024130 | €3,619.95 |
1 pcs available in stock
|
|
| Stainless steel ball valve ELIT SW DN10 + TCR02-NH | 271111024130 | €3,874.10 |
1 pcs available in stock
|
|
| Stainless steel ball valve ELIT SW DN15 + TCR02-NH | 271112024130 | €3,969.95 |
1 pcs available in stock
|
|
| Stainless steel ball valve ELIT SW DN20 + TCR02-NH | 271113024130 | €4,097.55 |
1 pcs available in stock
|
|
| Stainless steel ball valve ELIT SW DN25 + TCR05-NH | 271114024330 | €4,108.75 |
5 pcs available in stock
|
|
| Stainless steel ball valve ELIT SW DN32 + TCR05-NH | 271115024330 | €4,349.05 |
5 pcs available in stock
|
|
| Stainless steel ball valve ELIT SW DN40 + TCR05-NH | 271116024330 | €4,747.32 |
5 pcs available in stock
|
|
| Stainless steel ball valve ELIT SW DN50 + TCR11-NH | 271117024630 | €3,628.22 |
1 pcs available in stock
|
|
| Stainless steel ball valve ELIT BSP 1/4'' + TCR02-NH | 271120024130 | €3,636.78 |
1 pcs available in stock
|
|
| Stainless steel ball valve ELIT BSP 3/8'' + TCR02-NH | 271121024130 | €3,885.72 |
1 pcs available in stock
|
|
| Stainless steel ball valve ELIT BSP 1/2'' + TCR02-NH | 271122024130 | €3,967.50 |
1 pcs available in stock
|
|
| Stainless steel ball valve ELIT BSP 3/4'' + TCR02-NH | 271123024130 | €4,112.02 |
1 pcs available in stock
|
|
| Stainless steel ball valve ELIT BSP 1'' + TCR05-NH | 271124024330 | €4,177.80 |
5 pcs available in stock
|
|
| Stainless steel ball valve ELIT BSP 1''1/4 + TCR05-NH | 271125024330 | €4,326.60 |
5 pcs available in stock
|
|
| Stainless steel ball valve ELIT BSP 1''1/2 + TCR05-NH | 271126024330 | €4,788.75 |
5 pcs available in stock
|
|
| Stainless steel ball valve ELIT BSP 2'' + TCR11-NH | 271127024630 | €3,846.72 |
1 pcs available in stock
|
