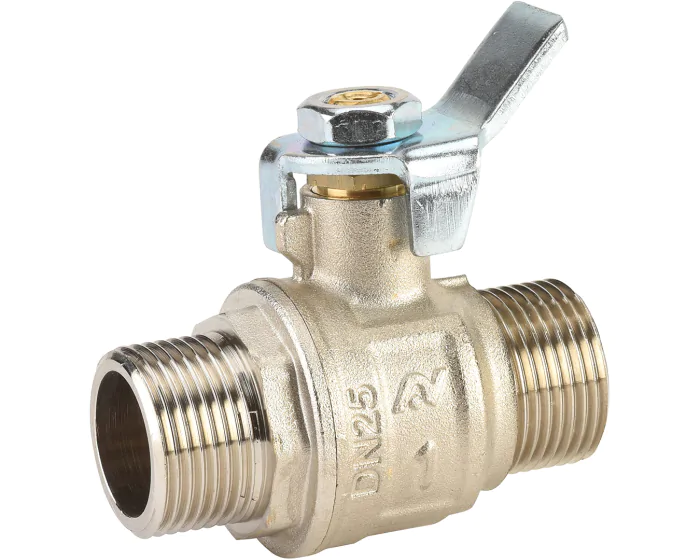

Brass ball valve 502 BSP male/male

Discover the oxygen degreased brass industrial series full bore ball valve with long thread and large flat bearing for shutting off oxygen, argon or nitrogen systems (not suitable for acetylene).
Choose your configuration
See all configurations
Réf.
CONF502004
(Indicative price) €17.05
Details
Details
DN metric 15/21
Brand AIRAGA
Direct mounting Yes
Thread standard ISO 228-1
Stem sealing material PTFE Gland packing + EPDM O-ring
Type of coating Nickel-plated
Opening device Handle
Application Industry
Shaft/stem matérial Brass CW614N
Torque (Nm) 106.4
Diameter of passage 15.00
DN 15
Face to Face (mm) 65.5
Fluid Oxygen / Argon / Nitrogen
Body material Brass CW617N
Number of ways 2
Bore Full
Packing gland Yes
PS (bar) 40
Connections BSP MM
Seats PTFE
Ball material Chrome-plated brass CW617N
TS max (°C) 120
TS min (°C) -20
Warranty period 2 years
Handle material Carbon steel

Configurations

Product Reference Price Stock
Brass ball valve 502 BSP male/male silicone free lever 3/8'' 502003 €27.82
7 pcs available in stock
Brass ball valve 502 BSP male/male silicone free lever 1/2'' 502004 €27.82
222 pcs available in stock
Brass ball valve 502 BSP male/male silicone free lever 3/4'' 502005 €39.45
87 pcs available in stock
Brass ball valve 502 BSP male/male silicone free lever 1'' 502006 €64.62
104 pcs available in stock
Brass ball valve 502 BSP male/male silicone free lever 1''1/4 502007 €94.45
239 pcs available in stock
Brass ball valve 502 BSP male/male silicone free lever 1''1/2 502008 €126.38
91 pcs available in stock
Brass ball valve 502 BSP male/male silicone free lever 2'' 502009 €211.50
78 pcs available in stock
Brass ball valve 502 BSP male/male silicone free butterfly handle 3/8'' 502013 €17.05
278 pcs available in stock
Brass ball valve 502 BSP male/male silicone free butterfly handle 1/2'' 502014 €27.82
1778 pcs available in stock
Brass ball valve 502 BSP male/male silicone free butterfly handle 3/4'' 502015 €39.45
428 pcs available in stock
Brass ball valve 502 BSP male/male silicone free butterfly handle 1/4'' 502016 €64.62
222 pcs available in stock
