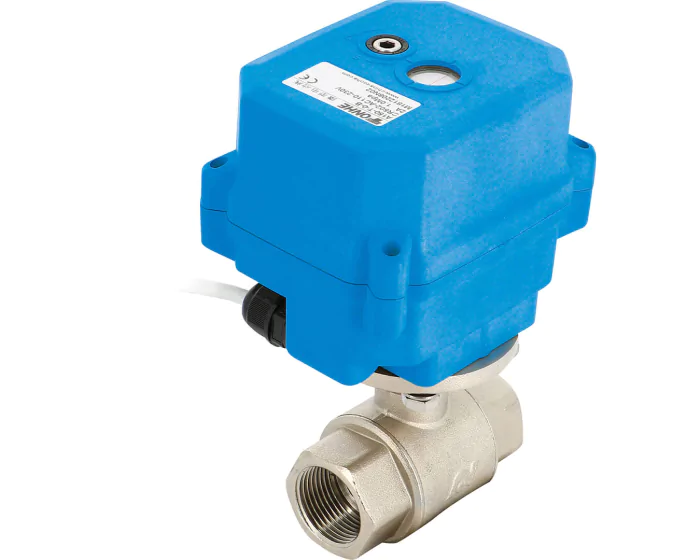

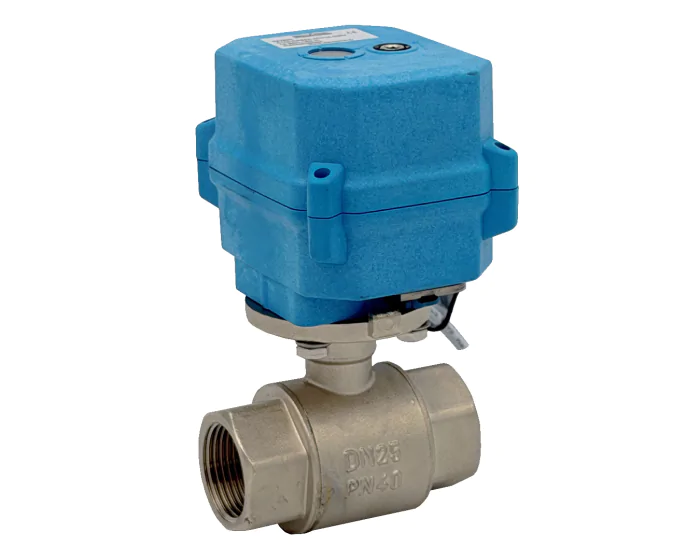

Brass ball valve 502 + T15 electric actuator

The 502 brass ball valve has a CW 617 N brass body and ball, PTFE seats. Actuation with 2-wire electric actuator RC (capacitor return) T15. ACS approval. PS: 16 bar, TS: 100°C. G threaded.

Choose your configuration

Voltage

See all configurations

Réf.

CONF270090022500

(Indicative price) €448.83

Quantity

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Documentation

Certificat ACS pour robinet 502 avec servomoteur T15 du 1/2" au 1"1/2 pdf - 271.2 ko

Fiche technique 502 - RTS 2voies ACS laiton avec servomoteur T15 - 2 fils RC pdf - 772.1 ko

Data sheet 502 - RTS 2 way ACS Brass with electrical actuator T15 - 2 fils RC pdf - 769.2 ko

Details

Details
Option certificate 3.1	No
Manual override	By key
Torque (Nm)	106.4
Declutchable	No
DN	1/4''
Duty service	S4 duty service - 30%
Torque limiter	No
Recommended location	Indoor
Body material	Brass CW617N
Number of ways	2
Bore	Full
Power (W)	30
Connections	BSP FF
Anti-condensation heater	None
Positive safety	Yes
Function	On-off
Electric actuator type	T 15
Operating time (s)	12
Voltage	230 V AC
TS max (°C)	100
TS min (°C)	-10
Ball valve design	2-piece body
Positive safety type	Super capacitor
Warranty period	1 year
Electrical connection	Per M12 gland packing + 1.5 m cable
Fire safe	No

Configurations

Product	Reference	Price	Stock
Brass ball valve 502 1/2'' + T15 230V AC	270002022500	€448.82	7 pcs available in stock
Brass ball valve 502 3/4'' + T15 230V AC	270003022500	€459.05	7 pcs available in stock
Brass ball valve 502 1'' + T15 230V AC	270004022500	€480.22	7 pcs available in stock
Brass ball valve 502 1/4'' + T15 230V AC	270090022500	€507.55	7 pcs available in stock
Brass ball valve 502 3/8'' + T15 230V AC	270091022500	€509.32	5 pcs available in stock
