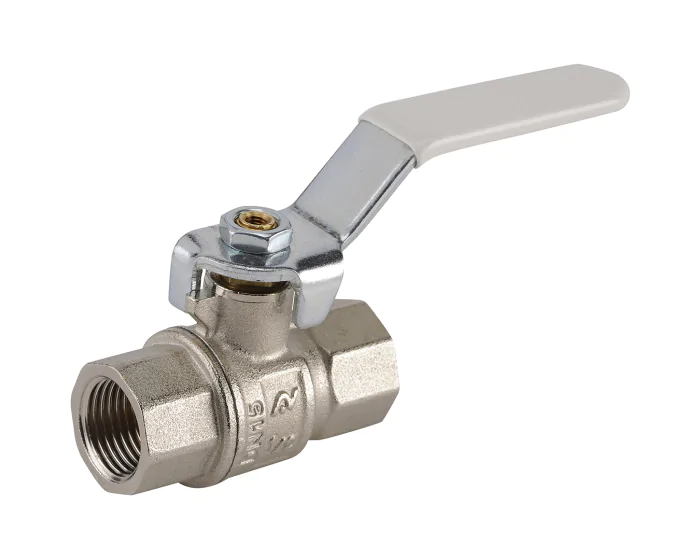

Brass ball valve 520 BSP female/female silicone free lever

Discover the oxygen degreased brass industrial series full bore ball valve with long thread and large flat bearing for shutting off oxygen, argon or nitrogen systems (not suitable for acetylene).
Choose your configuration
See all configurations
Réf.
CONF520004
(Indicative price) €14.98
Details
Details
DN inches NPS 1/2''
DN metric 15/21
Brand AIRAGA
Direct mounting Yes
Thread standard ISO 228-1
Stem sealing material PTFE Gland packing + EPDM O-ring
Type of coating Nickel-plated
Opening device Handle
Application Industry
Shaft/stem matérial Brass CW614N
Diameter of passage 15.00
DN 15
Face to Face (mm) 62.0
Fluid Oxygen / Argon / Nitrogen
Body material Brass CW617N
Number of ways 2
Bore Full
Packing gland Yes
PS (bar) 40
Connections BSP FF
Seats PTFE
Ball material Chrome-plated brass CW617N
TS max (°C) 120
TS min (°C) -20
Warranty period 2 years
Handle material Carbon steel
Handle type White lever

Configurations

Product Reference Price Stock
Produit
Brass ball valve 520 BSP female/female silicone free lever 1/4''
Produit
Brass ball valve 520 BSP female/female silicone free lever 3/8''
Produit
Brass ball valve 520 BSP female/female silicone free lever 1/2''
Produit
Brass ball valve 520 BSP female/female silicone free lever 3/4''
Produit
Brass ball valve 520 BSP female/female silicone free lever 1''
Produit
Brass ball valve 520 BSP female/female silicone free lever 1''1/4
Produit
Brass ball valve 520 BSP female/female silicone free lever 1''1/2
Produit
Brass ball valve 520 BSP female/female silicone free lever 2''

8 Item(s)
