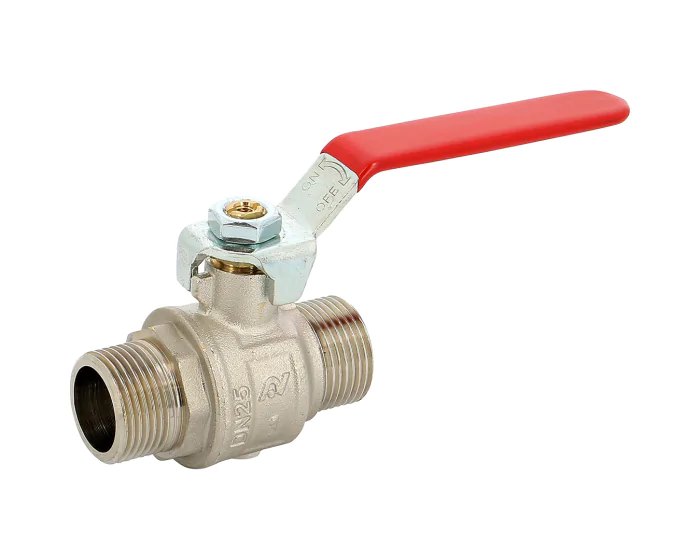

Brass ball valve 538 BSP male/male red lever

Discover the full bore brass ball valve with wide flat bearing for shut-off of water, heating, sprinkling, irrigation, air conditioning and compressed air systems.
Choose your configuration
See all configurations
Réf.
CONF538004
(Indicative price) €12.10
Details
Details
DN metric 15/21
Brand AIRAGA
Thread standard ISO 228-1
Stem sealing material PTFE Gland packing + EPDM O-ring
Type of coating Nickel-plated
Opening device Handle
Application Industry
Shaft/stem matérial Brass CW614N
Diameter of passage 15.00
DN 15
Face to Face (mm) 65.5
Fluid Cold water
Body material Brass CW617N
Number of ways 2
Bore Full
Bearing Large flate
Packing gland Yes
PS (bar) 40
Connections BSP MM
Seats PTFE
Ball material Chrome-plated brass CW617N
TS max (°C) 120
TS min (°C) -10
Warranty period 2 years
Handle material Carbon steel
Handle type Red lever

Configurations

Product Reference Price Stock
Produit
Brass ball valve 538 BSP male/male red lever 3/8''
Produit
Brass ball valve 538 BSP male/male red lever 1/2''
Produit
Brass ball valve 538 BSP male/male red lever 3/4''
Produit
Brass ball valve 538 BSP male/male red lever 1''

4 Item(s)
