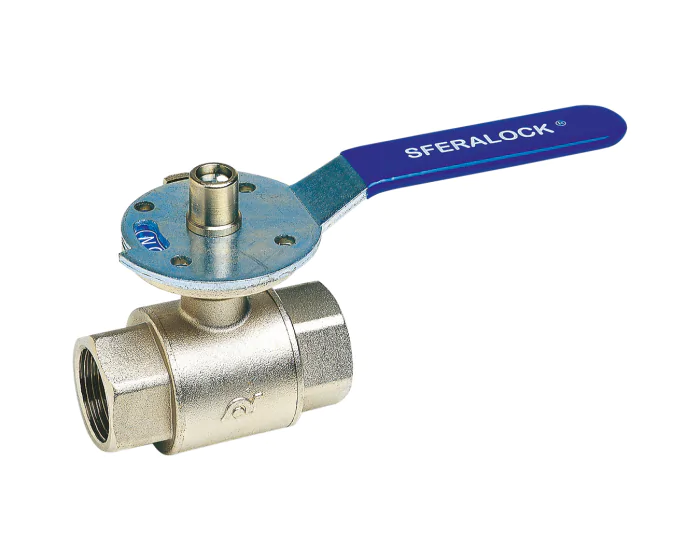

Brass ball valve 556 BSP female/female Sferalock

Discover the Sferalock locking device brass ball valve with full bore and wide flat bearing for shut-off of water, sanitary heating, sprinkling, irrigation, air conditioning and compressed air networks.
Choose your configuration
See all configurations
Réf.
CONF556004
(Indicative price) €80.05
Details
Details
DN metric 15/21
Brand AIRAGA
Thread standard ISO 228-1
Stem sealing material NBR double O-ring
Type of coating Nickel-plated
Opening device Handle
Application Industry
Shaft/stem matérial Brass CW614N
Lockable Yes
Torque (Nm) 106.4
Diameter of passage 15.00
DN 15
Face to Face (mm) 63.5
Fluid Compressed air
Body material Brass CW617N
Number of ways 2
Bore Full
PS (bar) 40
Connections BSP FF
Seats PTFE
Ball material Chrome-plated brass CW617N
TS max (°C) 120
TS min (°C) -10
Warranty period 2 years
Handle material Carbon steel
Handle type Blue lever

Configurations

Product Reference Price Stock
Produit
Brass ball valve 556 BSP Sferalock 1/4''
Produit
Brass ball valve 556 BSP Sferalock 3/8''
Produit
Brass ball valve 556 BSP Sferalock 1/2''
Produit
Brass ball valve 556 BSP Sferalock 3/4''
Produit
Brass ball valve 556 BSP Sferalock 1''
Produit
Brass ball valve 556 BSP Sferalock 1''1/4
Produit
Brass ball valve 556 BSP Sferalock 1''1/2
Produit
Brass ball valve 556 BSP Sferalock 2''

8 Item(s)
