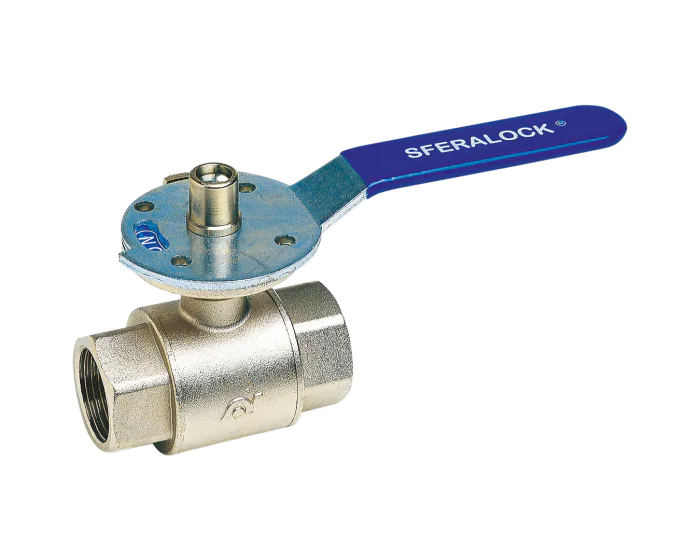

Brass ball valve 557 BSP female/female Sferalock + decompression hole

Find the Sferalock locking device brass ball valve with full bore decompression and wide flat bearing for shut-off of water, sanitary heating, sprinkling, irrigation, air conditioning and compressed air networks.
Choose your configuration
See all configurations
Réf.
CONF557004
(Indicative price) €89.55
Details
Details
DN metric 15/21
Brand AIRAGA
Thread standard ISO 228-1
Stem sealing material NBR double O-ring
Type of coating Nickel-plated
Opening device Handle
Application Industry
Shaft/stem matérial Brass CW614N
Lockable Yes
Torque (Nm) 106.4
Diameter of passage 15.00
DN 15
Face to Face (mm) 63.5
Fluid Compressed air
Body material Brass CW617N
Number of ways 2
Bore Full
PS (bar) 40
Connections BSP FF
Seats PTFE
Ball material Chrome-plated brass CW617N
TS max (°C) 100
TS min (°C) -10
Warranty period 2 years
Handle material Carbon steel
Handle type Blue lever
With decompression hole Yes

Configurations

Product Reference Price Stock
Brass ball valve 557 BSP Sferalock + decompression hole 1/4'' 557002 €89.55
8 pcs available in stock
Brass ball valve 557 BSP Sferalock + decompression hole 3/8'' 557003 €89.55
1 pcs available in stock
Brass ball valve 557 BSP Sferalock + decompression hole 1/2'' 557004 €89.55
348 pcs available in stock
Brass ball valve 557 BSP Sferalock + decompression hole 3/4'' 557005 €101.50
100 pcs available in stock
Brass ball valve 557 BSP Sferalock + decompression hole 1'' 557006 €128.38
Currently not in stock
