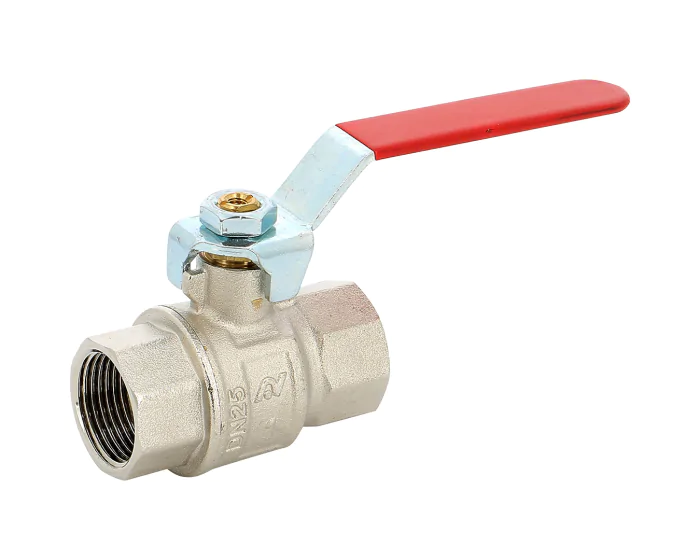

Brass ball valve 576 BSP female/female red lever

Discover the full bore brass ball valve with wide flat bearing for shut-off of water, heating, sprinkling, irrigation, air conditioning and compressed air systems.
Choose your configuration
See all configurations
Réf.
CONF576004
(Indicative price) €16.45
Details
Details
DN metric 15/21
Brand AIRAGA
Thread standard ISO 228-1
Stem sealing material PTFE Gland packing + EPDM O-ring
Type of coating Nickel-plated
Opening device Handle
Application Industry
Shaft/stem matérial Brass CW614N
Torque (Nm) 106.4
Diameter of passage 15.00
DN 15
Face to Face (mm) 62.0
Fluid Cold water
Body material Brass CW617N
Number of ways 2
Bore Full
Packing gland Yes
PS (bar) 40
Connections BSP FF
Seats PTFE
Ball material Chrome-plated brass CW617N
TS max (°C) 120
TS min (°C) -10
Warranty period 2 years
Handle material Carbon steel
Handle type Red lever

Configurations

Product Reference Price Stock
Brass ball valve 576 BSP female/female red lever 1/8'' 576001 €16.45
409 pcs available in stock
Brass ball valve 576 BSP female/female red lever 1/4'' 576002 €16.45
939 pcs available in stock
Brass ball valve 576 BSP female/female red lever 3/8'' 576003 €16.45
1194 pcs available in stock
Brass ball valve 576 BSP female/female red lever 1/2'' 576004 €22.38
1627 pcs available in stock
Brass ball valve 576 BSP female/female red lever 3/4'' 576005 €31.70
1744 pcs available in stock
Brass ball valve 576 BSP female/female red lever 1'' 576006 €49.18
538 pcs available in stock
Brass ball valve 576 BSP female/female red lever 1''1/4 576007 €76.55
221 pcs available in stock
Brass ball valve 576 BSP female/female red lever 1''1/2 576008 €114.80
485 pcs available in stock
Brass ball valve 576 BSP female/female red lever 2'' 576009 €172.18
141 pcs available in stock
Brass ball valve 576 BSP female/female red lever 2''1/2 576010 €306.88
59 pcs available in stock
Brass ball valve 576 BSP female/female red lever 3'' 576011 €466.38
37 pcs available in stock
Brass ball valve 576 BSP female/female red lever 4'' 576012 €830.38
9 pcs available in stock
