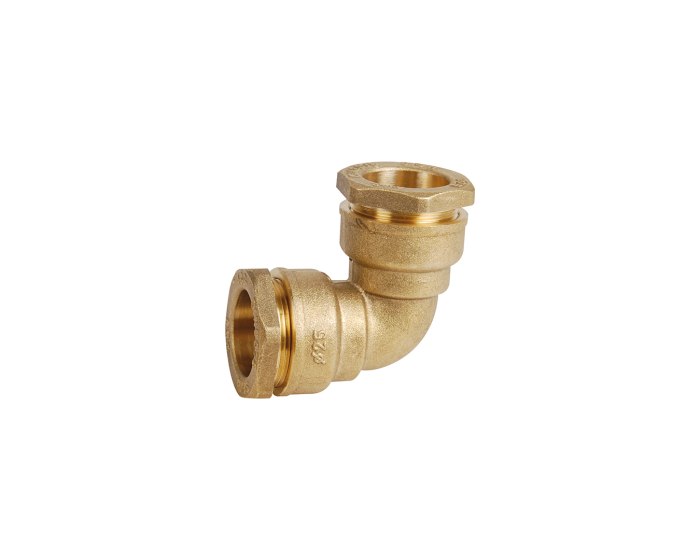

Brass elbow 90° socket - For PE pipes
The 816 brass elbow 90° socket is well-suited for applications in water supply and distribution networks using polypropylene pipes. Conforming to DIN 8076-1, it can be easily installed without requiring disassembly.
Documentation
Notice montage Raccords laiton à serrage extérieur
pdf - 368.2 ko
Installation Operating Manual brass fittings for PE pipes
pdf - 260.4 ko
Technical datasheet brass fittings for PE pipes
pdf - 320.7 ko
Details
Construction standard | DIN 8076-1 - ISO 3555 |
---|---|
Spring material | polyethylene |
Material | Brass CW617N |
Type of mounting | On pipe without dismantling the fitting |
Torque (Nm) | 106.4 |
Face to Face (mm) | 49.0 |
Gasket | NBR |
PS (bar) | 16 |
TS max (°C) | 40 |
TS min (°C) | 4 |
Warranty period | 2 years |
Type of fitting | DECA |
Fitting shape | Elbow |
PE pipe diameter | 25 |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
Brass elbow 90° socket for PE pipes Ø20 | 816020 | €12.50 |
5097 pcs available in stock
|
|
Brass elbow 90° socket for PE pipes Ø25 | 816025 | €17.75 |
2581 pcs available in stock
|
|
Brass elbow 90° socket for PE pipes Ø32 | 816032 | €29.42 |
933 pcs available in stock
|
|
Brass elbow 90° socket for PE pipes Ø40 | 816040 | €49.55 |
57 pcs available in stock
|
|
Brass elbow 90° socket for PE pipes Ø50 | 816050 | €73.25 |
Currently not in stock
|
|
Brass elbow 90° socket for PE pipes Ø63 | 816063 | €134.95 |
Currently not in stock
|
