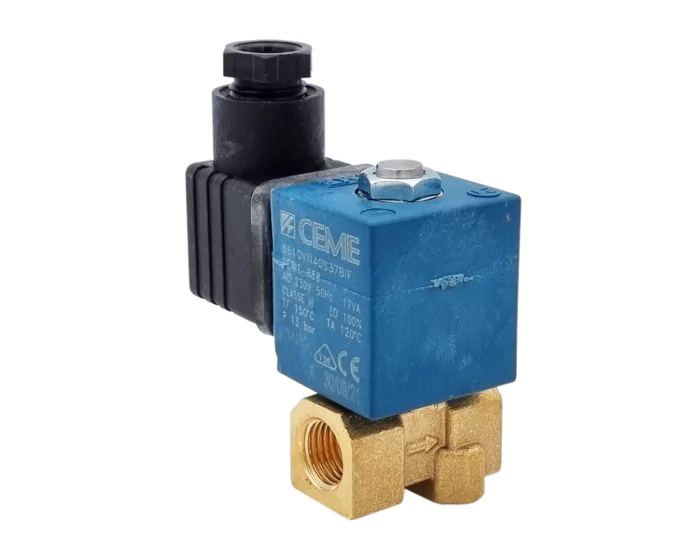

Brass mini solenoid valve 2/2 EV 66 direct acting normally closed
The solenoid valve type EV 66 is a 2/2 way direct acting brass solenoid valve, normally closed (NC), all voltages.
Documentation
Certificate of Conformity
pdf - 217.3 ko
Data sheet direct acting solenoid valve CEME 2/2 EV66 NF
pdf - 312.6 ko
Spare parts
Details
Option certificate 3.1 | No |
---|---|
Maximum delta P (bar) | 9 |
Minimum delta P (bar) | 0 |
Coil type | B6 |
Connector | T30 |
Torque (Nm) | 106.4 |
Diameter of passage | 3 |
Face to Face (mm) | 35.0 |
Fluid | Water / Air / Neutral gases |
Protection class (IP) | IP 65 |
Gasket | FKM |
Kv (m³/h) | 0.17 |
Body material | Brass CW617N |
Position | Normally closed |
PS (bar) | 9 |
Connections | BSP FF |
TS max (°C) | 150 |
TS min (°C) | -10 |
Solenoid valve type | Direct acting |
Solenoid pilot valve ways | 2/2 |
Warranty period | 1 year |
CE | Excluded (Article 4. §3) |
Electrical connection | T30 connector |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
Brass mini solenoid valve 2/2 EV 66 1/8'' direct acting NC 230V AC | 083694N | €48.25 |
21 pcs available in stock
|
|
Brass mini solenoid valve 2/2 EV 66 1/8'' direct acting NC 24V AC | 083695N | €47.45 |
1246 pcs available in stock
|
|
Brass mini solenoid valve 2/2 EV 66 1/8'' direct acting NC 24V DC | 083696N | €60.00 |
21 pcs available in stock
|
|
Brass mini solenoid valve 2/2 EV 66 1/8'' direct acting NC 12V DC | 083697N | €48.95 |
21 pcs available in stock
|
|
Brass mini solenoid valve 2/2 EV 66 1/4'' direct acting NC 230V AC | 083700N | €48.25 |
Currently not in stock
|
|
Brass mini solenoid valve 2/2 EV 66 1/4'' direct acting NC 24V AC | 083701N | €47.45 |
Currently not in stock
|
|
Brass mini solenoid valve 2/2 EV 66 1/4'' direct acting NC 24V DC | 083705N | €60.00 |
Currently not in stock
|
|
Brass mini solenoid valve 2/2 EV 66 1/4'' direct acting NC 12V DC | 083706N | €48.95 |
Currently not in stock
|
