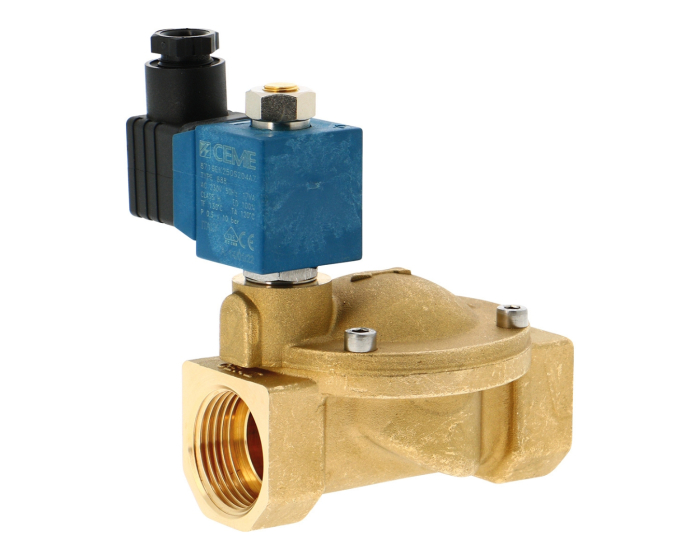

Brass solenoid valve ESM 86 servo-assisted normally closed
The solenoid valve type ESM 86 is a 2/2-way normally closed (NC) servo-assisted brass solenoid valve, all voltages.
Documentation
Spare parts
Details
| Option certificate 3.1 | No |
|---|---|
| Maximum delta P (bar) | 10 |
| Minimum delta P (bar) | 0.00 |
| Coil type | B6 |
| Connector | T30 |
| Torque (Nm) | 106.4 |
| Diameter of passage | 10 |
| Face to Face (mm) | 61.0 |
| Fluid | Water / Air / Neutral gases |
| Protection class (IP) | IP 65 |
| Kv (m³/h) | 1.86 |
| Body material | Brass CW617N |
| Membrane material | NBR |
| Position | Normally closed |
| PS (bar) | 10 |
| Connections | BSP FF |
| TS max (°C) | 80 |
| Solenoid valve type | Servo-assisted |
| Solenoid pilot valve ways | 2/2 |
| Warranty period | 1 year |
| Electrical connection | T30 connector |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Brass solenoid valve ESM 86 3/8'' servo-assisted NC 230V AC | 086001 | €140.90 |
24 pcs available in stock
|
|
| Brass solenoid valve ESM 86 1/2'' servo-assisted NC 230V AC | 086002 | €142.00 |
218 pcs available in stock
|
|
| Brass solenoid valve ESM 86 3/4'' servo-assisted NC 230V AC | 086003 | €148.55 |
268 pcs available in stock
|
|
| Brass solenoid valve ESM 86 1'' servo-assisted NC 230V AC | 086004 | €160.55 |
293 pcs available in stock
|
|
| Brass solenoid valve ESM 86 1''1/4 servo-assisted NC 230V AC | 086005 | €343.55 |
31 pcs available in stock
|
|
| Brass solenoid valve ESM 86 1''1/2 servo-assisted NC 230V AC | 086006 | €413.00 |
65 pcs available in stock
|
|
| Brass solenoid valve ESM 86 2'' servo-assisted NC 230V AC | 086007 | €590.00 |
23 pcs available in stock
|
|
| Brass solenoid valve ESM 86 2''1/2 servo-assisted NC 230V AC | 086008 | €1,723.18 |
8 pcs available in stock
|
|
| Brass solenoid valve ESM 86 3'' servo-assisted NC 230V AC | 086009 | €1,845.05 |
5 pcs available in stock
|
|
| Brass solenoid valve ESM 86 3/8'' servo-assisted NC 24V AC | 086011 | €130.92 |
7 pcs available in stock
|
|
| Brass solenoid valve ESM 86 1/2'' servo-assisted NC 24V AC | 086012 | €130.92 |
70 pcs available in stock
|
|
| Brass solenoid valve ESM 86 3/4'' servo-assisted NC 24V AC | 086013 | €140.65 |
77 pcs available in stock
|
|
| Brass solenoid valve ESM 86 1'' servo-assisted NC 24V AC | 086014 | €152.08 |
42 pcs available in stock
|
|
| Brass solenoid valve ESM 86 1''1/4 servo-assisted NC 24V AC | 086015 | €329.30 |
8 pcs available in stock
|
|
| Brass solenoid valve ESM 86 1''1/2 servo-assisted NC 24V AC | 086016 | €398.18 |
15 pcs available in stock
|
|
| Brass solenoid valve ESM 86 2'' servo-assisted NC 24V AC | 086017 | €565.10 |
12 pcs available in stock
|
|
| Brass solenoid valve ESM 86 2''1/2 servo-assisted NC 24V AC | 086018 | €1,614.08 |
3 pcs available in stock
|
|
| Brass solenoid valve ESM 86 3'' servo-assisted NC 24V AC | 086019 | €1,800.32 |
2 pcs available in stock
|
|
| Brass solenoid valve ESM 86 3/8'' servo-assisted NC 48V AC | 086031 | €131.60 |
9 pcs available in stock
|
|
| Brass solenoid valve ESM 86 1/2'' servo-assisted NC 48V AC | 086032 | €139.55 |
8 pcs available in stock
|
|
| Brass solenoid valve ESM 86 3/4'' servo-assisted NC 48V AC | 086033 | €145.50 |
Currently not in stock
|
|
| Brass solenoid valve ESM 86 1'' servo-assisted NC 48V AC | 086034 | €154.50 |
18 pcs available in stock
|
|
| Brass solenoid valve ESM 86 1''1/4 servo-assisted NC 48V AC | 086035 | €342.95 |
5 pcs available in stock
|
|
| Brass solenoid valve ESM 86 1''1/2 servo-assisted NC 48V AC | 086036 | €433.05 |
5 pcs available in stock
|
|
| Brass solenoid valve ESM 86 2'' servo-assisted NC 48V AC | 086037 | €629.40 |
2 pcs available in stock
|
|
| Brass solenoid valve ESM 86 2''1/2 servo-assisted normally closed 48V AC | 086038N | €1,737.50 |
8 pcs available in stock
|
|
| Brass solenoid valve ESM 86 3'' servo-assisted normally closed 48V AC | 086039N | €1,875.00 |
5 pcs available in stock
|
|
| Brass solenoid valve ESM 86 3/8'' servo-assisted NC 12V DC | 086041 | €132.58 |
9 pcs available in stock
|
|
| Brass solenoid valve ESM 86 1/2'' servo-assisted NC 12V DC | 086042 | €132.58 |
13 pcs available in stock
|
|
| Brass solenoid valve ESM 86 3/4'' servo-assisted NC 12V DC | 086043 | €136.72 |
18 pcs available in stock
|
|
| Brass solenoid valve ESM 86 1'' servo-assisted NC 12V DC | 086044 | €148.48 |
5 pcs available in stock
|
|
| Brass solenoid valve ESM 86 1''1/4 servo-assisted NC 12V DC | 086045 | €295.42 |
6 pcs available in stock
|
|
| Brass solenoid valve ESM 86 2'' servo-assisted normally closed 12V DC | 086047N | €564.72 |
23 pcs available in stock
|
|
| Brass solenoid valve ESM 86 2''1/2 servo-assisted normally closed 12V DC | 086048N | €1,211.22 |
8 pcs available in stock
|
|
| Brass solenoid valve ESM 86 3'' servo-assisted normally closed 12V DC | 086049N | €1,426.35 |
5 pcs available in stock
|
|
| Brass solenoid valve ESM 86 3/8'' servo-assisted NC 24V DC | 086051 | €132.58 |
11 pcs available in stock
|
|
| Brass solenoid valve ESM 86 1/2'' servo-assisted NC 24V DC | 086052 | €132.58 |
35 pcs available in stock
|
|
| Brass solenoid valve ESM 86 3/4'' servo-assisted NC 24V DC | 086053 | €136.72 |
51 pcs available in stock
|
|
| Brass solenoid valve ESM 86 1'' servo-assisted NC 24V DC | 086054 | €148.48 |
67 pcs available in stock
|
|
| Brass solenoid valve ESM 86 1''1/4 servo-assisted NC 24V DC | 086055 | €295.42 |
14 pcs available in stock
|
|
| Brass solenoid valve ESM 86 1''1/2 servo-assisted NC 24V DC | 086056 | €381.15 |
14 pcs available in stock
|
|
| Brass solenoid valve ESM 86 2'' servo-assisted NC 24V DC | 086057 | €564.72 |
8 pcs available in stock
|
|
| Brass solenoid valve ESM 86 2''1/2 servo-assisted NC 24V DC | 086058 | €1,211.22 |
2 pcs available in stock
|
|
| Brass solenoid valve ESM 86 3'' servo-assisted NC 24V DC | 086059 | €1,426.35 |
2 pcs available in stock
|
