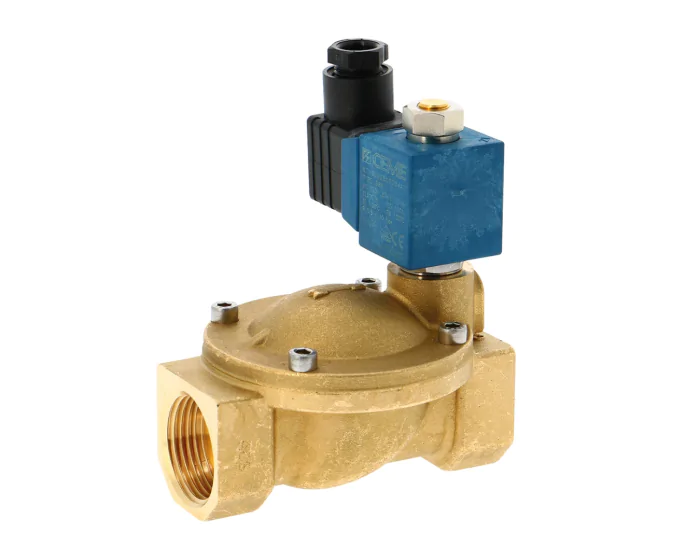

Brass solenoid valve ESM 87 servo-assisted normally open - ACS
The solenoid valve type ESM 87 W is a 2/2-way normally open (NO) servo-assisted brass valve especially suitable for drinking water (approved).
Documentation
Spare parts
Details
| Option certificate 3.1 | No |
|---|---|
| Maximum delta P (bar) | 10 |
| Minimum delta P (bar) | 0.3 |
| Coil type | B6S |
| Connector | T30 |
| Torque (Nm) | 106.4 |
| Diameter of passage | 12 |
| Face to Face (mm) | 61.0 |
| Fluid | Drinking water |
| Protection class (IP) | IP 65 |
| Kv (m³/h) | 2.10 |
| Body material | Brass CW617N |
| Membrane material | EPDM ACS |
| Position | Normally open |
| PS (bar) | 10 |
| Connections | BSP FF |
| TS max (°C) | 90 |
| Solenoid valve type | Servo-assisted |
| Solenoid pilot valve ways | 2/2 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Electrical connection | T30 connector |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Brass solenoid valve ESM 87 1/2'' servo-assisted NO 230V AC - ACS | 087502 | €170.00 |
10 pcs available in stock
|
|
| Brass solenoid valve ESM 87 3/4'' servo-assisted NO 230V AC - ACS | 087503 | €200.45 |
Currently not in stock
|
|
| Brass solenoid valve ESM 87 1'' servo-assisted NO 230V AC - ACS | 087504 | €200.45 |
4 pcs available in stock
|
|
| Brass solenoid valve ESM 87 1/2'' servo-assisted NO 24V AC - ACS | 087512 | €155.28 |
8 pcs available in stock
|
|
| Brass solenoid valve ESM 87 3/4'' servo-assisted NO 24V AC - ACS | 087513 | €200.45 |
Currently not in stock
|
|
| Brass solenoid valve ESM 87 1'' servo-assisted NO 24V AC - ACS | 087514 | €200.45 |
5 pcs available in stock
|
