Documentation

Certificate of Conformity pdf - 195.1 ko

Fiche technique électrovanne à commande assistée NF ESV90-VAPEUR-CEME pdf - 351.2 ko

Data sheet pilot operated stem solenoid valve CEME 2/2 ESV 90 NC pdf - 351.5 ko

Spare parts

Details

Details
Option certificate 3.1	No
Maximum delta P (bar)	10
Minimum delta P (bar)	1
Coil type	B12
Connector	T30
Face to Face (mm)	56.0
Fluid	Steam
Protection index (IP)	IP 65
Gasket	PTFE
Kv (m³/h)	1.10
Body material	Brass CW617N
Position	Normally closed
PS (bar)	10
Connections	BSP FF
TS max (°C)	180
TS min (°C)	0
Solenoid valve type	Servo-assisted
Solenoid pilot valve ways	2/2
Warranty period	1 year
CE	Excluded (Article 4. §3)
Electrical connection	T30 connector

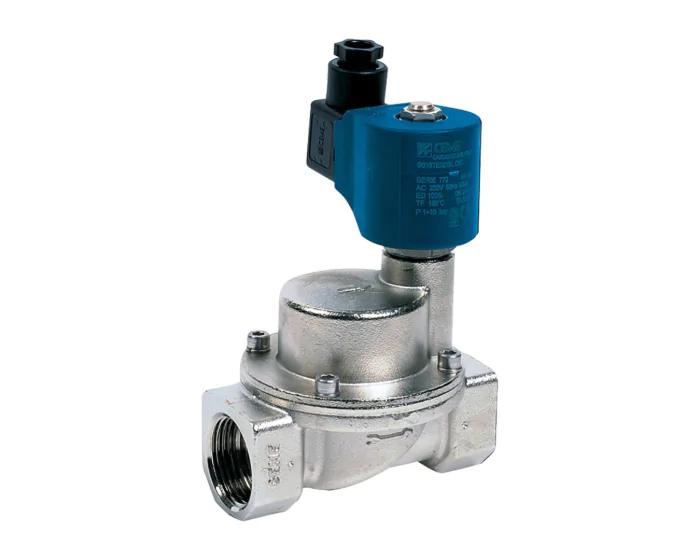

Brass solenoid valve ESV 90 servo-assisted normally closed - Steam

The solenoid valve type ESV 90 is a 2/2-way normally closed (NC) brass solenoid valve for steam.

Choose your configuration

Voltage

See all configurations

Réf.

CONF088002

(Indicative price) €141.40

Quantity

Configurations

Product	Reference	Price	Stock
Produit Brass solenoid valve ESV 90 1/2'' servo-assisted normally closed 230VAC	Référence 088002	P.U HT €141.40	Disponibilité 25 pcs available in stock
Produit Brass solenoid valve ESV 90 3/4'' servo-assisted normally closed 230VAC	Référence 088003	P.U HT €378.05	Disponibilité 22 pcs available in stock
Produit Brass solenoid valve ESV 90 1'' servo-assisted normally closed 230V AC	Référence 088004	P.U HT €380.00	Disponibilité 11 pcs available in stock
Produit Brass solenoid valve ESV 90 1''1/4 servo-assisted NC 230V AC	Référence 088005	P.U HT €1,188.00	Disponibilité Currently not in stock
Produit Brass solenoid valve ESV 90 1''1/2 servo-assisted NC 230V AC	Référence 088006	P.U HT €1,213.00	Disponibilité Currently not in stock
Produit Brass solenoid valve ESV 90 2'' servo-assisted normally closed 230V AC	Référence 088007	P.U HT €1,712.50	Disponibilité Currently not in stock
Produit Brass solenoid valve ESV 90 1/2'' servo-assisted normally closed 24V AC	Référence 088012	P.U HT €141.40	Disponibilité 4 pcs available in stock
Produit Brass solenoid valve ESV 90 3/4'' servo-assisted normally closed 24V AC	Référence 088013	P.U HT €378.05	Disponibilité 6 pcs available in stock
Produit Brass solenoid valve ESV 90 1'' servo-assisted normally closed 24V AC	Référence 088014	P.U HT €380.00	Disponibilité 2 pcs available in stock
Produit Brass solenoid valve ESV 90 1''1/4 servo-assisted normally closed 24V AC	Référence 088015N	P.U HT €1,188.00	Disponibilité Currently not in stock
Produit Brass solenoid valve ESV 90 1''1/2 servo-assisted normally closed 24V AC	Référence 088016N	P.U HT €1,213.00	Disponibilité Currently not in stock
Produit Brass solenoid valve ESV 90 2'' servo-assisted normally closed 24V AC	Référence 088017N	P.U HT €1,712.50	Disponibilité Currently not in stock
Produit Brass solenoid valve ESV 90 1/2'' servo-assisted normally closed 48V AC	Référence 088032N	P.U HT €141.40	Disponibilité 25 pcs available in stock
Produit Brass solenoid valve ESV 90 3/4'' servo-assisted normally closed 48V AC	Référence 088033N	P.U HT €378.05	Disponibilité 22 pcs available in stock
Produit Brass solenoid valve ESV 90 1'' servo-assisted normally closed 48V AC	Référence 088034N	P.U HT €380.00	Disponibilité 11 pcs available in stock
Produit Brass solenoid valve ESV 90 1''1/4 servo-assisted normally closed 48V AC	Référence 088035N	P.U HT €1,188.00	Disponibilité Currently not in stock
Produit Brass solenoid valve ESV 90 1''1/2 servo-assisted normally closed 48V AC	Référence 088036N	P.U HT €1,213.00	Disponibilité Currently not in stock
Produit Brass solenoid valve ESV 90 2'' servo-assisted normally closed 48V AC	Référence 088037N	P.U HT €1,712.50	Disponibilité Currently not in stock
Produit Brass solenoid valve ESV 90 1/2'' servo-assisted normally closed 24V DC	Référence 088052	P.U HT €141.40	Disponibilité 7 pcs available in stock
Produit Brass solenoid valve ESV 90 3/4'' servo-assisted normally closed 24V DC	Référence 088053	P.U HT €378.05	Disponibilité Currently not in stock
Produit Brass solenoid valve ESV 90 1'' servo-assisted normally closed 24V DC	Référence 088054N	P.U HT €380.00	Disponibilité 11 pcs available in stock
Produit Brass solenoid valve ESV 90 1''1/4 servo-assisted normally closed 24V DC	Référence 088055N	P.U HT €1,188.00	Disponibilité Currently not in stock
Produit Brass solenoid valve ESV 90 1''1/2 servo-assisted normally closed 24V DC	Référence 088056N	P.U HT €1,213.00	Disponibilité Currently not in stock
Produit Brass solenoid valve ESV 90 2'' servo-assisted normally closed 24V DC	Référence 088057N	P.U HT €1,712.50	Disponibilité Currently not in stock
