Documentation
Details
| Option certificate 3.1 | No |
|---|---|
| Face to Face (mm) | 66.0 |
| Protection index (IP) | IP 65 |
| Body material | Brass CW617N |
| Membrane material | NBR |
| Position | Normally closed |
| PS (bar) | 25 |
| Connections | BSP FF |
| TS max (°C) | 90 |
| TS min (°C) | 5 |
| Solenoid valve type | Servo-assisted |
| Solenoid pilot valve ways | 2/2 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Electrical connection | T30 connector |

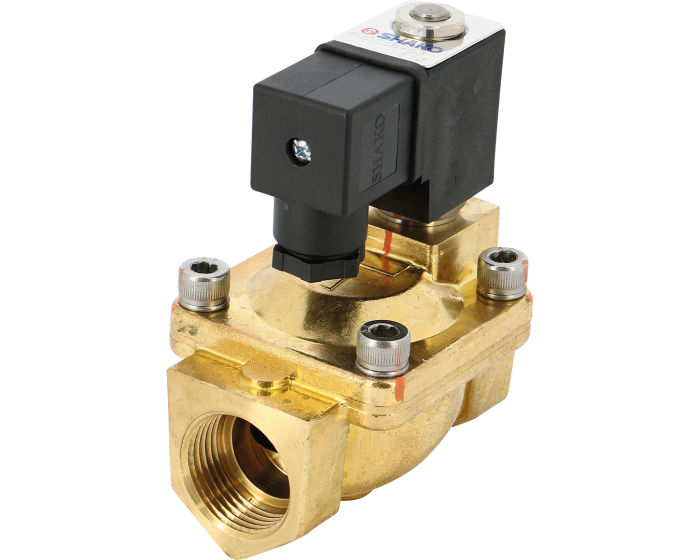

Brass solenoid valves PU 225-H normally closed - High pressure
The solenoid valve type PU 225-H is a 25 bar 2/2-way normally closed (NC) servo-assisted brass solenoid valve, all voltages.
