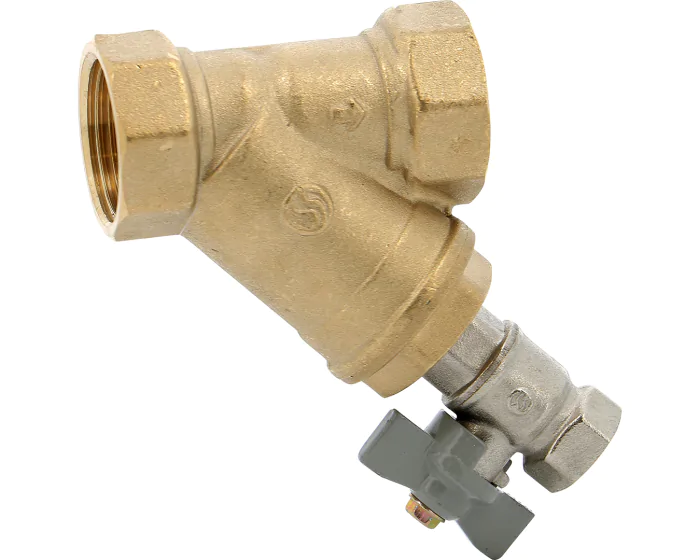

Brass Y-strainer 211 with drain cock
Syveco offers the Y strainer with brass screen and flush valve series 211, ACS 4MS certified, CW617N brass body, BSP threaded female / female model, for water supply and distribution networks
Documentation
Certificate of Conformity
pdf - 194 ko
Notice montage filtre à tamis en Y taraudé femelle
pdf - 186 ko
Installation operating manual threaded Y strainer
pdf - 151.6 ko
Spare parts
Details
DN metric | 15/21 |
---|---|
Bonnet material | Brass CW617N |
Mounting direction | Horizontal or vertical |
Screen material | AISI 304 stainless steel |
Accessories for flanges | Brass CW617N |
Thread standard | ISO 228-1 |
Draining valve | Yes |
Application | Water supply and distribution network |
DN | 15 |
Face to Face (mm) | 58.0 |
Fluid | Hot water / Cold water / Drinking water |
Gasket | NBR + EPDM |
Kv (m³/h) | 4.4 |
Body material | Brass CW617N |
PS (bar) | 16 |
Connections | BSP FF |
Screen (mesh) | 8.5/10° |
TS max (°C) | 120 |
TS min (°C) | 0 |
Warranty period | 2 years |
Filter design | Y |
