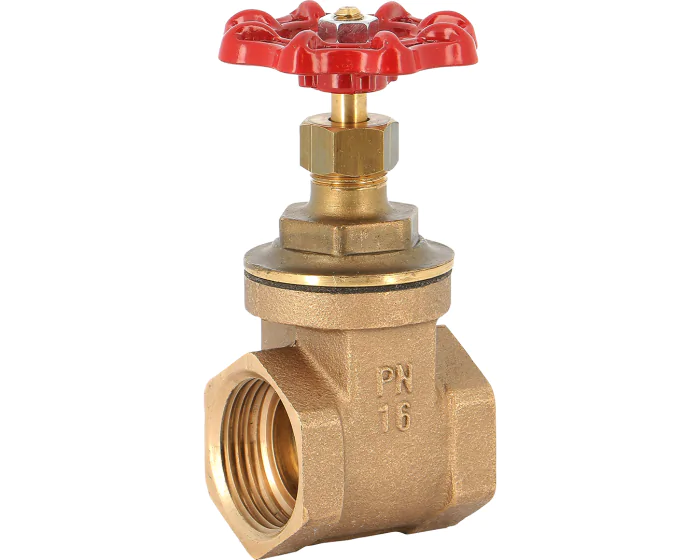

Bronze gate valve 146 BSP
Syveco offers the gate valve series 146, 1 piece body in bronze, female BSP cylindrical connection, PN16, full bore, non-leak for water supply and distribution networks
![main product photo](https://www.syveco.com/media/catalog/product/cache/582ed6748c10bbb99b236b27a124fb97/1/4/146-vanne-opercule-bronze-ff-bsp.jpg)
Documentation
Details
Bonnet material | Brass CW617N |
---|---|
Thread standard | ISO 228-1 |
Bonnet | Screwed |
Opening device | Handwheel |
Application | Water supply and distribution network |
Shaft/stem matérial | Brass CW614N |
Diameter of passage | 15.00 |
DN | 15 |
Face to Face (mm) | 38.0 |
Sealing | Metal / Metal |
Gasket | EPDM |
Kv (m³/h) | 11.0 |
Body material | Bronze |
Gate material | Brass CW617N |
Bore | Full |
Packing gland | Yes |
PS (bar) | 16 |
Connections | BSP FF |
Seats | Bronze |
TS max (°C) | 80 |
TS min (°C) | -10 |
Warranty period | 2 years |
Type of stem | Non-rising |
