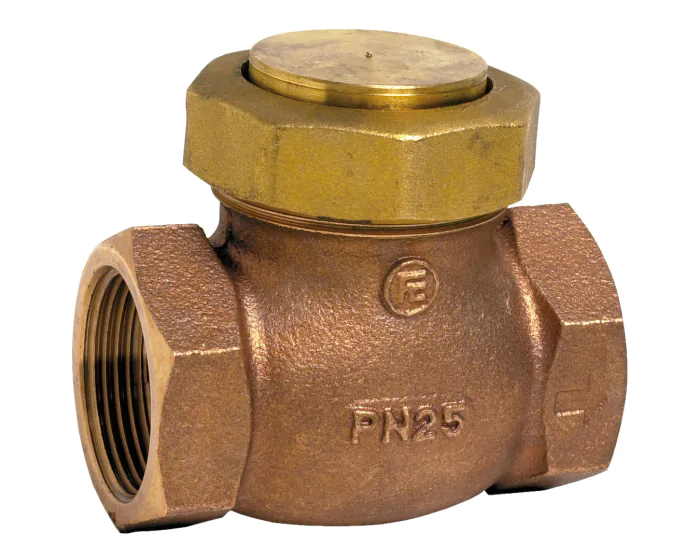

Bronze vertical lift check valve 350 metal/metal tightness BSP
The 350 series vertical lift check valve, or piston check valve, is made of bronze with metal-metal tightness, female BSP cylindrical threaded, horizontal mounting, for heating networks, water supply, distribution networks, compressed air.
Documentation
Certificate of Conformity
pdf - 210 ko
Notice montage clapet de non retour taraudé
pdf - 153.6 ko
Installation operating manual threaded check valve
pdf - 172.6 ko
Details
Mounting direction | Horizontal |
---|---|
CE risk category | III Module H |
Thread standard | ISO 228-1 |
Closure member material | Stainless steel AISI 316 |
Application | Heating / Sanitary / Drinking water / Air conditioning / Irrigation |
Torque (Nm) | 106.4 |
DN | 15 |
Face to Face (mm) | 56.0 |
Sealing | Metal / Metal |
Fluid | Cold water |
Body material | Bronze |
PS (bar) | 25 |
Connections | BSP FF |
Seats | Stainless steel AISI 316 |
TS max (°C) | 180 |
TS min (°C) | -10 |
CE | Yes |
Obturator type | Piston |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
Bronze vertical lift check valve 350 metal/metal tightness BSP 1/4'' | 350002 | €125.72 |
7 pcs available in stock
|
|
Bronze vertical lift check valve 350 metal/metal tightness BSP 3/8'' | 350003 | €125.98 |
13 pcs available in stock
|
|
Bronze vertical lift check valve 350 metal/metal tightness BSP 1/2'' | 350004 | €135.98 |
108 pcs available in stock
|
|
Bronze vertical lift check valve 350 metal/metal tightness BSP 3/4'' | 350005 | €173.10 |
60 pcs available in stock
|
|
Bronze vertical lift check valve 350 metal/metal tightness BSP 1'' | 350006 | €239.72 |
107 pcs available in stock
|
|
Bronze vertical lift check valve 350 metal/metal tightness BSP 1''1/4 | 350007 | €407.85 |
6 pcs available in stock
|
|
Bronze vertical lift check valve 350 metal/metal tightness BSP 1''1/2 | 350008 | €520.30 |
28 pcs available in stock
|
|
Bronze vertical lift check valve 350 metal/metal tightness BSP 2'' | 350009 | €704.35 |
10 pcs available in stock
|
