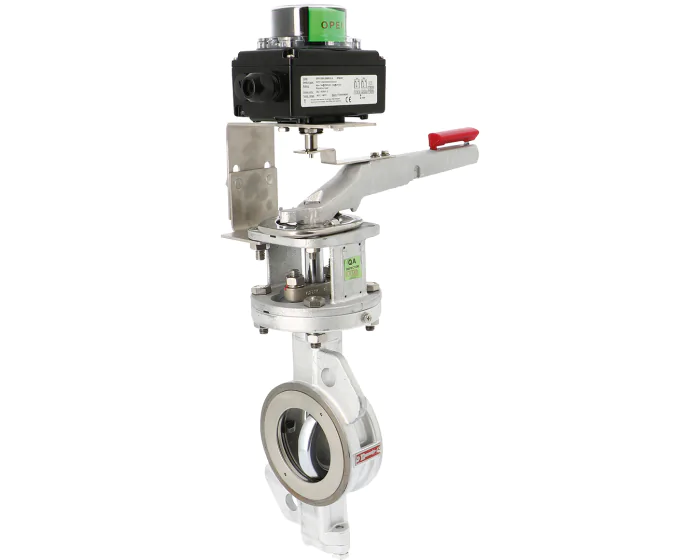

Butterfly valve 1114 + limit switch box SF012

Double offset butterfly valve designed with stainless steel body, disc and shaft, PTFE seats and packing gland. PS: 25 bar. TS: -10°C / + 210°C. Mounting between flanges PN25. Fire safety. IP67 SF limit switch box.
Choose your configuration
See all configurations
Réf.
CONF2609710462012
(Indicative price) €2,218.93
Details
Details
Option certificate 3.1 Yes
Shaft/stem matérial Stainless steel 316
ATEX compatible No
Switch type dry SPDT
Face to Face (mm) 46.0
3D indicator Yes
Protection class (IP) IP 67
Body material Stainless steel CF8M (1.4408)
Number of ways 2
Disc material Stainless steel CF8M
Packing gland PTFE - Graphite
PS (bar) 25
Connections Between flanges PN25
Seats PTFE-Graphite
TS max (°C) 210
TS min (°C) -10
Butterfly valve design Double offset
Wafer/lug Wafer
Warranty period 1 year
CE 2014/68/EU
Electrical connection Per gland packing M20 x 1.5

Configurations

Product Reference Price Stock
Butterfly valve 1114 + limit switch box SF012 DN65 2609710462012 €2,218.92
8 pcs available in stock
Butterfly valve 1114 + limit switch box SF012 DN80 2609720462012 €2,874.12
2 pcs available in stock
Butterfly valve 1114 + limit switch box SF012 DN100 2609730462012 €3,311.70
2 pcs available in stock
Butterfly valve 1114 + limit switch box SF012 DN125 2609740462012 €4,318.65
2 pcs available in stock
Butterfly valve 1114 + limit switch box SF012 DN150 2609750462012 €4,518.68
2 pcs available in stock
